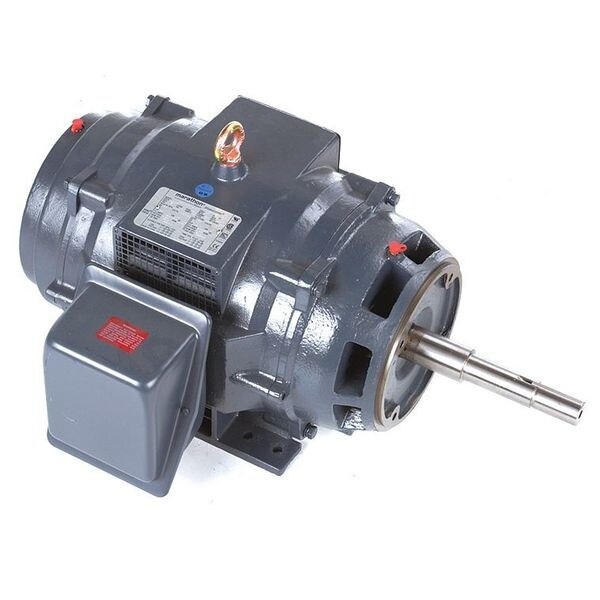

CC Pump Motor, 3-Phase, 20 HP, 1750 rpm

  • Mfr # 256TTDBD6037
  • Zoro # G2219747
product price:
$
2,214.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
20 hp
RPM Range
1,701-1,800
Nameplate RPM
1,770
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
256TTDBD6037
Zoro #
G2219747
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
20 3/4 in
Overall Length
28 7/8 in
Shaft Length
8 1/4 in
Shaft Dia.
1 1/4 in
Body Dia.
11.8 in
Bolt Circle Dia.
7 1/4 in
Height
13 1/2 in
Shaft Diameter
1 1/4 in
Bolt Circle Diameter
7 1/4 in
Frame Size
256JP
Body Diameter
11.8 in
Wire Rope Length
28 7/8 in
Length
28 7/8 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
20 hp
RPM Range
1,701-1,800
Nameplate RPM
1,770
Voltage
230V AC, 460V AC
Frame
256JP
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Efficiency Group
NEMA Premium Efficient
Duty
Continuous
Frame Material
Steel
Motor Enclosure Design
Open Dripproof
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
CC Number
CC003A
Motor Thermal Protection
None
Standards
CE Mark, CSA Certified, UL Recognized
Nominal Efficiency
93 %
Motor Application
Pump
Full Load Amps
48.5/24.3 A
Phase
Three
Hz
60 Hz
Inverter Rated
Inverter Rated
Motor Shaft Design
JP Threaded
Motor Sub Application
Close-Coupled Pump
Ins. Class
F
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Motor Frame Material
Steel
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
NEMA Design
B
No. of Speeds
1
Weight
500 lb
Conduit Box Location
Exterior
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Conduit Box Position
F1, F2
Shaft Type
Keyway and Internal Thread
Application
Pump
Nameplate Service Factor @ 60 Hz
1.15
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
Premium Efficiency (IE3)
NEMA Design Class
B
Product Type
Pump Motor
Number of Speeds
1
Full Load Current @ 60 Hz
48.5/24.3 A
Constant Torque Rating
2:1 Constant Torque
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Shaft Design
Threaded
Insulation Class
F
Bearing Type
Ball
Shaft Thread Type
JP

Description

Close-Coupled Pump Motor, Body Dia. 11.8 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 256JP, Hz 60 Hz, Full Load Amps 48.5/24.3, Height 13 1/2 in, HP 20, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 20 3/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
