Shop DAYTON

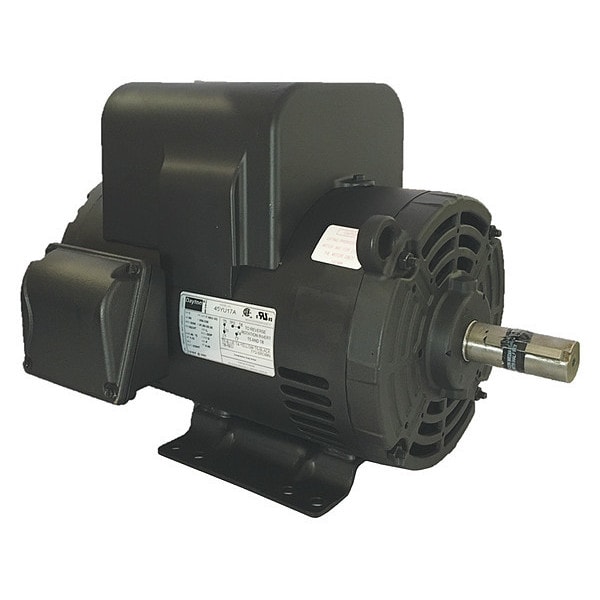

Air Compressor Motor, 7-1/2 hp, 3495 RPM

  • Mfr # 45YU17

  • Zoro # G9063702

product price:
$
984.99
/ea
Additional $205.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Motor Design
Capacitor-Start/Run
HP
7 1/2 hp
RPM Range
3,001-3,600
Voltage
208-230V AC
Frame
182-4T
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
45YU17
Zoro #
G9063702
UPC #
-
Country of Origin
Mexico
Item
Air Compressor Motor
Motor Design
Capacitor-Start/Run
HP
7 1/2 hp
RPM Range
3,001-3,600
Voltage
208-230V AC
Frame
182-4T
Motor Thermal Protection
Manual
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Rigid Base
Motor Shaft Design
Keyed
Motor Mounting Position
Horizontal
Full Load Amps
31.8-28.5 A
Motor Service Factor
1.15
Ins. Class
F
Hz
60 Hz
Phase
Single
Voltage Compatibility
115/230V AC, 120/240V AC, 230V AC, 240V AC
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Standards
CSA, UL Listed
Motor Bearings
Ball
Motor Application
Air Compressor
Nameplate RPM
3,495 RPM
Duty Cycle
Continuous
Motor Sub Application
Condenser Fan
Nominal Efficiency
85.5 %
Motor Frame Material
Steel
Inverter Rated
Not Inverter Rated
Part Winding Start Capable
Across-the-Line
Maximum Run Time
24 hr
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Weight
84.87 lb
CC Number
CC029A
NEMA Design
L
Usable @ 208V
Usable at 208V

Description

Air Compressor Motor, Single Phase, Motor Design Capacitor-Start/Run, 7 1/2 hp HP, Nameplate RPM 3,495 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 31.8-28.5 A, 182-4T Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
