Shop DAYTON

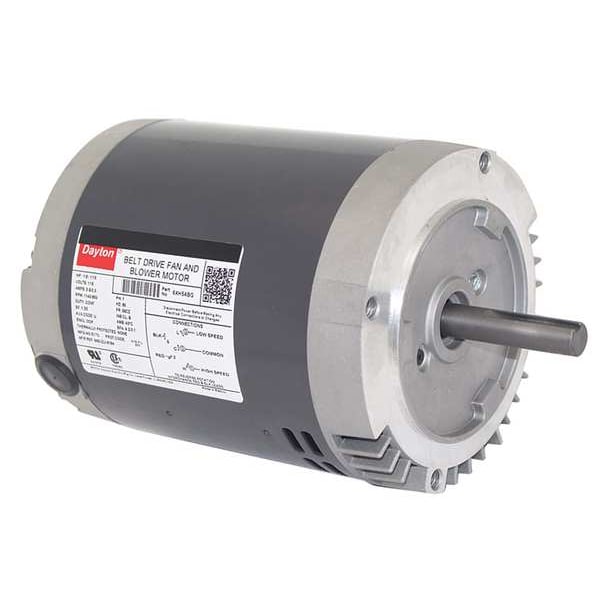

Belt Drive Mtr, SplitPh, ODP, 1/6HP, 1140rpm

  • Mfr # 6XH54

  • Zoro # G1138715

product price:  $617.99
/ea
Free Shipping & Returns

Key Features

Frame
56CZ
Motor Bearings
Ball
Ins. Class
B
Max. Ambient Temp.
104 Degrees F
Manufacturers Warranty Length
1 yr
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6XH54
Zoro #
G1138715
UPC #
190735373088
Country of Origin
Mexico

Dimensions

Manufacturers Warranty Length
1 yr
Shaft Length
2 7/16 in
Shaft Dia.
5/8 in
Shaft Diameter
5/8 in
Frame Size
56CZ

Details

Frame
56CZ
Motor Bearings
Ball
Ins. Class
B
Max. Ambient Temp.
104 Degrees F
Phase
Single
Motor Shaft Design
Keyed
Footnotes
45
Motor Thermal Protection
None
Standards
CSA Certified, UL Recognized
Duty
Continuous
Motor Mounting Position
All Angle
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Frame Material
Steel
Motor Frame Material
Rolled Steel
Item
Belt Drive Motor
Nameplate RPM
1,140/850
Motor Mounting Type
Face
No. of Speeds
2
Motor Application
HVAC/R
HP
1/6, 1/15
Motor Shaft Rotation
CW/CCW
RPM Range
1,101-1,200
Voltage
115V AC
Hz
60 Hz
Full Load Amps
4.2/3.1 A
Motor Sub Application
Belt Drive Fan/Blower
Motor Service Factor
1.35
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
Duty Cycle
Continuous
Insulation Class
B
Application
Fan/Blower
Product Type
Fan and Blower Motor
Full Load Current @ 60 Hz
4.2/3.1 A
Mounting Position
All Angle
Shaft Design
Keyed
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz
Bearing Type
Ball
Drive Type
Belt Drive
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 60 Hz
1.35

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/15 hp, 1/6 hp HP, Nameplate RPM 1,140/850 RPM, No. of Speeds 2, Voltage 115V AC, 4.2/3.1 A Full Load Amps, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type C-Face, Motor Frame Material Steel, Motor Mounting Position All Angle
