Shop DAYTON

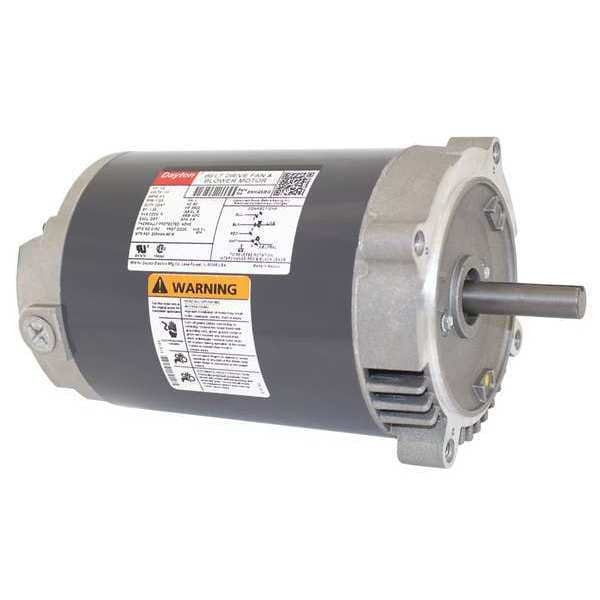

Belt Drive Mtr, SplitPh, ODP, 1/6HP, 1725rpm

  • Mfr # 6XH46BG

  • Zoro # G3018285

product price:  $286.99
/ea
Free Shipping & Returns

Key Features

Motor Thermal Protection
None
Full Load Amps
3.4 A
Motor Shaft Rotation
CW/CCW
Overall Length
10 3/4 in
Standards
CSA Certified (258501), UL Recognized (E47479)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6XH46BG
Zoro #
G3018285
UPC #
00190735373019
Country of Origin
Mexico

Dimensions

Overall Length
10 3/4 in
Length Less Shaft
8 3/4 in
Body Dia.
5 5/8 in
Shaft Dia.
5/8 in
Shaft Length
2 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
5/8 in
Body Diameter
5.6 in
Frame Size
56CZ

Details

Motor Thermal Protection
None
Full Load Amps
3.4 A
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258501), UL Recognized (E47479)
Duty
Continuous
HP
1/6
Includes
Shaft Key
Motor Sub Application
Belt Drive Fan/Blower
Hz
60 Hz
Item
Belt Drive Motor
Motor Mounting Type
Face
Nameplate RPM
1,725
Motor Bearings
Ball
Motor Service Factor
1.35
Phase
Single
Frame Material
Steel
No. of Speeds
1
Motor Mounting Position
All Angle
Max. Ambient Temp.
104 Degrees F
Frame
56CZ
Voltage
115V AC
Motor Shaft Design
Keyed
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Ins. Class
B
Motor Enclosure Design
Open Dripproof
Motor Design
Split-Phase
RPM Range
1,701-1,800
Motor Frame Material
Rolled Steel
Nominal Efficiency
52.5 %
Motor Application
HVAC/R
Duty Cycle
Continuous
Shaft Design
Keyed
Motor Enclosure Type
Open Drip Proof
Bearing Type
Ball
Number of Speeds
1
Product Type
Fan and Blower Motor
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 60 Hz
1.35
Application
Fan/Blower
Drive Type
Belt Drive
Mounting Position
All Angle
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
3.4 A
Insulation Class
B

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/6 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 3.4 A Full Load Amps, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type C-Face, Motor Frame Material Steel, Motor Mounting Position All Angle, Shaft Length 2 in, Shaft Dia. 5/8 in
