Shop DAYTON

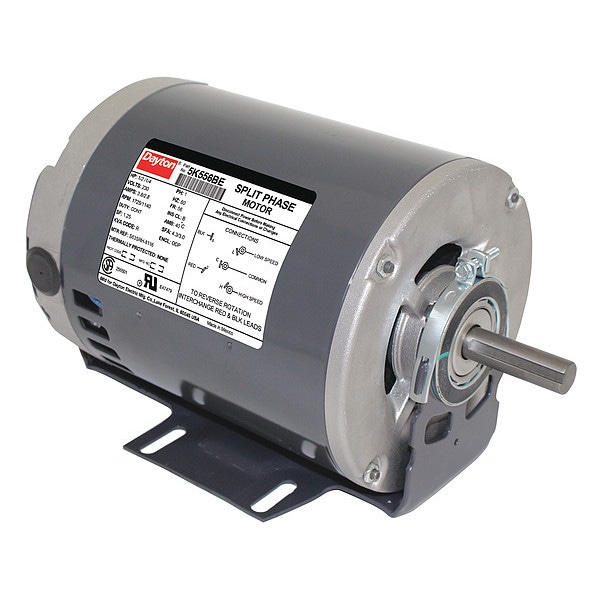

Mtr, 1/2, 1/4HP, 1725/1140RPM, 230V

  • Mfr # 5K556
  • Zoro # G1544356
product price:
$
423.99
/ea
Free Shipping & Returns

Key Features

Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Hz
60 Hz
HP
1/2 hp, 1/4 hp
Overall Length
10 13/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5K556
Zoro #
G1544356
UPC #
190735345290
Country of Origin
Mexico

Dimensions

Overall Length
10 13/16 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
8 7/8 in
Shaft Dia.
5/8 in
Shaft Diameter
5/8 in
Frame Size
56
Wire Rope Length
10 13/16 in
Length
10 13/16 in

Details

Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Hz
60 Hz
HP
1/2 hp, 1/4 hp
Motor Design
Split-Phase
RPM Group
1701-1800
Standards
CSA (258501), UL (E47479)
No. of Speeds
2
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Motor Efficiency Group
Standard Efficient
Motor Service Factor
1.25
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
Ins. Class
B
Voltage
230V AC
Full Load Amps
3.8/2.8 A
Phase
Single
Motor Thermal Protection
None
Motor Shaft Design
Keyed
Motor Application
General Purpose
RPM Range
1,701-1,800
Item
General Purpose Motor
Duty
Continuous
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 120V AC, 240V AC, 200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 460V AC, 230V AC, 240V AC
Frame Material
Steel
Frame
56
Nominal Efficiency
63.7 %
Nameplate RPM
1,725/1,140 RPM
Duty Cycle
Continuous
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
Insulation Class
B
Frequency
60 Hz
Full Load Current @ 60 Hz
3.8/2.8 A
Efficiency Rating
Standard Efficiency (IE1)
Application
General Purpose
Nameplate Service Factor @ 60 Hz
1.25
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
1 yr
Shaft Design
Keyed
Product Type
General Purpose Motor

Description

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/2 hp, 1/4 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 230V AC, Full Load Amps 3.8/2.8 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Keyed, Motor Frame Material Steel
