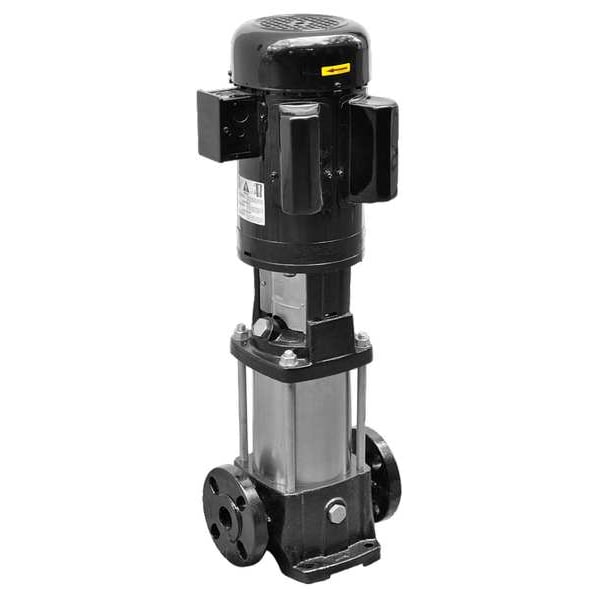

Booster Pump, 2 hp, 120/208 to 240V AC, 1 Phase, 1-1/4 in Flanged Inlet Size, 11 Stage

  • Mfr # 5UWJ3

  • Zoro # G1355286

product price:
$
1,696.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
2 hp
Voltage - Pumps
120/208 to 240V AC
Phase - Pumps
1
Inlet Size - Pumps
1-1/4 in Flanged
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5UWJ3
Zoro #
G1355286
UPC #
190735352786
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/4 in Flanged
Outlet Size - Pumps
1-1/4 in Flanged
Max. Dia. Solids
5/64 in
Height
28 15/16 in
Length
9.88 in
Manufacturers Warranty Length
1 yr
Width
8 in
Overall Length
9.88 in
Overall Height
28.94 in
Overall Width
8 in
Compatible Intake Pipe Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Compatible Discharge Pipe Size
1 1/4 in
Discharge Flange Size
1 1/4 in
Solid Diameter (Maximum)
0.07 in
Intake Size
1 1/4 in
Solids Diameter - Maximum
0.07 in
Inlet Diameter
1 1/4 in
Discharge Diameter
1 1/4 in
Wire Rope Length
9.88 in

Details

Item
Booster Pump
Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
2 hp
Voltage - Pumps
120/208 to 240V AC
Phase - Pumps
1
Number of Stages - Pumps
11
Max. Pressure - Pumps
148 psi
Housing Material - Pumps
Cast Iron
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Max. Liquid Temp.
248 Degrees F
Phase
Single
Motor Type
Capacitor-Start/Run
Pump Mounting Position
Horizontal
Max. Case Pressure
245 psi
Seal Material
EPDM/Silicon Carbide/Stainless Steel
Inlet
1-1/4" FNPT
Includes
Manual
Hz
60
Motor RPM
3,450 RPM
Amps
16.6/9.4-8.3 A
Motor Enclosure
Totally Enclosed Fan Cooled (TEFC)
Wetted Materials
Cast Iron, EPDM, Silicon Carbide, Stainless Steel
Best Efficiency GPM @ PSI
16 @ 104
Impeller Material
Stainless Steel
Bearing Type
Ball
GPM @ 140 PSI
4
GPM @ 80 PSI
19
Impeller Type
Closed
Agency Compliance
c UL us
Motor Ambient Temp. Rating
40 Degrees C
HP
2
Duty
Continuous
Voltage
115/208-230
GPM @ 60 PSI
22
Housing Material
Cast iron
Frame
56c
Outlet
1-1/4" FNPT
Stages
11
GPM @ 100 PSI
16
GPM @ 120 PSI
12
Max. Pressure
148 psi
Standards
cULus Listed
Shut Off Pressure (Maximum)
148 psi
Flow Rate @ 140 psi
4 gpm
Flow Rate @ 70 psi
20.5 gpm
Discharge Type
Flange
Motor Frame Designation
56C
Motor Ambient Temperature (Maximum)
104 Degrees F
Duty Cycle
Continuous
Flow Rate @ 60 psi
22 gpm
Flow Rate @ 100 psi
16 gpm
Flow Rate @ 120 psi
12 gpm
Number of Stages
11
Intake Type
Flange
Flow Rate @ 90 psi
17.5 gpm
Nameplate Voltage
115/230V AC
Flow Rate @ 80 psi
19 gpm
Pumping Application
City Water Mains, Cooling Water Systems, Irrigation
Maximum RPM
3,450 RPM
For Use With Potable Systems
No
Mounting Orientation
Vertical
Motor Ambient Temperature (Minimum)
40 Degrees F
Wetted Material
Cast Iron, EPDM, Silicon Carbide, Stainless Steel
Impeller Design
Closed
Horsepower
2 hp
Pump Housing Material
Cast Iron
Compatible with Media Type
Non-Abrasive Liquids, Water
Case Pressure (Maximum)
245 psi
Maximum Media Temperature
248 Degrees F
Frequency
60 Hz
Best Efficiency Pressure
104 psi
Best Efficiency Flow
18 gpm
Power Source
Corded Electric
Motor Ambient Temperature - Minimum
40 Degrees F
Motor Enclosure Design
Totally Enclosed Fan Cooled
Full Load Current
16.6/9.4-8.3 A
Shut Off Pressure - Maximum
148 psi
Discharge Standard
Flange
Media Temperature - Minimum
0 Degrees F
Pump Casing Material
Cast Iron
Revolutions Per Minute - Maximum
3,450 RPM
Inlet Gender
Female
Installation
Floor Standing
Case Pressure - Maximum
245 psi
Inlet Standard
Flange
Motor Ambient Temperature - Maximum
104 Degrees F
Media Temperature - Maximum
248 Degrees F
Motor Design
Capacitor-Start/Run
Flow Rate - Maximum
22 gpm
Feet of Head - Maximum
341 ft
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Booster Pump, Phase Single, Pump Housing Material Cast Iron, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 2 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 60 psi 22 gpm, Flow Rate @ 70 psi 20.5 gpm, Flow Rate @ 80 psi 19 gpm, Flow Rate @ 90 psi 17.5 gpm, Flow Rate @ 100 psi 16 gpm, Flow Rate @ 120 psi 12 gpm, Shut Off Pressure (Maximum) 148 psi, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 1/4 in, Intake Type Flange, Mounting Orientation Vertical
