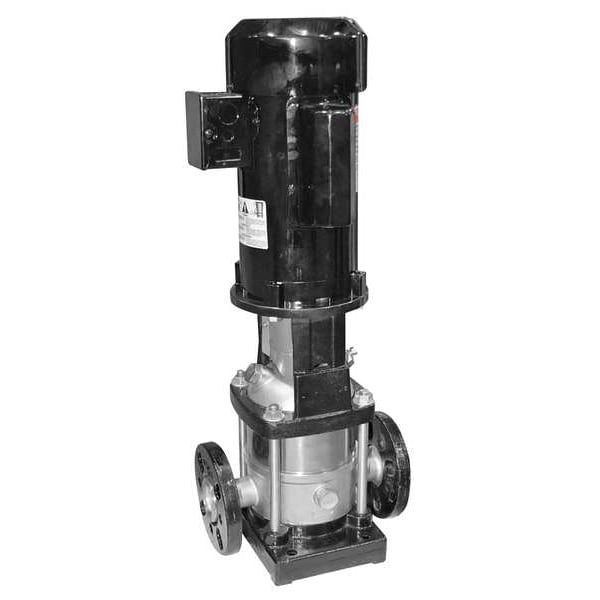

Dayton Booster Pump, 1 hp, 120/208 to 240V AC, 1 Phase, 1-1/4 in Flanged Inlet Size, 5 Stage 5UWK7 - main

Booster Pump, 1 hp, 120/208 to 240V AC, 1 Phase, 1-1/4 in Flanged Inlet Size, 5 Stage

  • Mfr # 5UWK7

  • Zoro # G2245196

product price:  $1,667.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
1 hp
Voltage - Pumps
120/208 to 240V AC
Phase - Pumps
1
Inlet Size - Pumps
1-1/4 in Flanged
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5UWK7
Zoro #
G2245196
UPC #
190735352922
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/4 in Flanged
Outlet Size - Pumps
1-1/4 in Flanged
Manufacturers Warranty Length
1 yr
Width
8 1/4 in
Length
9 7/8 in
Height
25 1/2 in
Max. Dia. Solids
5/64 in
Overall Width
8.25 in
Overall Height
25.5 in
Overall Length
9.88 in
Discharge Flange Size
1 1/4 in
Compatible Intake Pipe Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Intake Size
1 1/4 in
Solid Diameter (Maximum)
0.07 in
Compatible Discharge Pipe Size
1 1/4 in
Discharge Diameter
1 1/4 in
Solids Diameter - Maximum
0.07 in
Inlet Diameter
1 1/4 in

Details

Item
Booster Pump
Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
1 hp
Voltage - Pumps
120/208 to 240V AC
Phase - Pumps
1
Number of Stages - Pumps
5
Max. Pressure - Pumps
66 psi
Housing Material - Pumps
Stainless Steel
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Seal Material
EPDM/Silicon Carbide/Stainless Steel
Voltage
115/208-230
Max. Liquid Temp.
248 Degrees F
Agency Compliance
c UL us
GPM @ 60 PSI
6
Motor Enclosure
Totally Enclosed Fan Cooled (TEFC)
Phase
Single
Outlet
1-1/4" FNPT
Impeller Type
Closed
Max. Case Pressure
362 psi
HP
1
Motor Ambient Temp. Rating
40 Degrees C
Best Efficiency GPM @ PSI
16 @ 45
Bearing Type
Ball
Motor RPM
3,450 RPM
Motor Type
Capacitor-Start
Housing Material
Stainless Steel
Frame
56c
Includes
Manual
Impeller Material
Stainless Steel
Max. Pressure
66 psi
Wetted Materials
EPDM, Silicon Carbide, Stainless Steel
Pump Mounting Position
Horizontal
Hz
60
GPM @ 40 PSI
17
Inlet
1-1/4" FNPT
Amps
12.2/6.3-6.1 A
Stages
5
Duty
Continuous
Standards
cULus Listed
Impeller Design
Closed
Case Pressure (Maximum)
362 psi
Flow Rate @ 40 psi
17 gpm
Flow Rate @ 50 psi
12 gpm
Pumping Application
City Water Mains, Cooling Water Systems, Irrigation
Compatible with Media Type
Non-Abrasive Liquids, Water
Best Efficiency Pressure
45 psi
Horsepower
1 hp
Motor Frame Designation
56C
Maximum RPM
3,450 RPM
Motor Ambient Temperature (Minimum)
40 Degrees F
Intake Type
Flange
Shut Off Pressure (Maximum)
66 psi
Mounting Orientation
Vertical
Maximum Media Temperature
248 Degrees F
Flow Rate @ 60 psi
6 gpm
Discharge Type
Flange
Duty Cycle
Continuous
Pump Housing Material
Stainless Steel
Number of Stages
5
Motor Ambient Temperature (Maximum)
104 Degrees F
Wetted Material
EPDM, Silicon Carbide, Stainless Steel
Frequency
60 Hz
For Use With Potable Systems
No
Nameplate Voltage
115/230V AC
Motor Design
Capacitor-Start
Revolutions Per Minute - Maximum
3,450 RPM
Inlet Gender
Female
Power Source
Corded Electric
Full Load Current
12.2/6.3-6.1 A
Media Temperature - Minimum
0 Degrees F
Best Efficiency Flow
16 gpm
Motor Ambient Temperature - Minimum
40 Degrees F
Motor Ambient Temperature - Maximum
104 Degrees F
Media Temperature - Maximum
248 Degrees F
Installation
Floor Standing
Pump Casing Material
Stainless Steel
Shut Off Pressure - Maximum
66 psi
Inlet Standard
Flange
Case Pressure - Maximum
362 psi
Motor Enclosure Design
Totally Enclosed Fan Cooled
Discharge Standard
Flange

Description

Booster Pump, Phase Single, Pump Housing Material Stainless Steel, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 1 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 40 psi 17 gpm, Flow Rate @ 50 psi 12 gpm, Flow Rate @ 60 psi 6 gpm, Shut Off Pressure (Maximum) 66 psi, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 1/4 in, Intake Type Flange, Mounting Orientation Vertical, For Use With Potable Systems No, Amps 12.2/6.3-6.1 A, Best Efficiency Pressure 45 psi

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
