  5. Booster Pump, 1/2 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 2 Stage

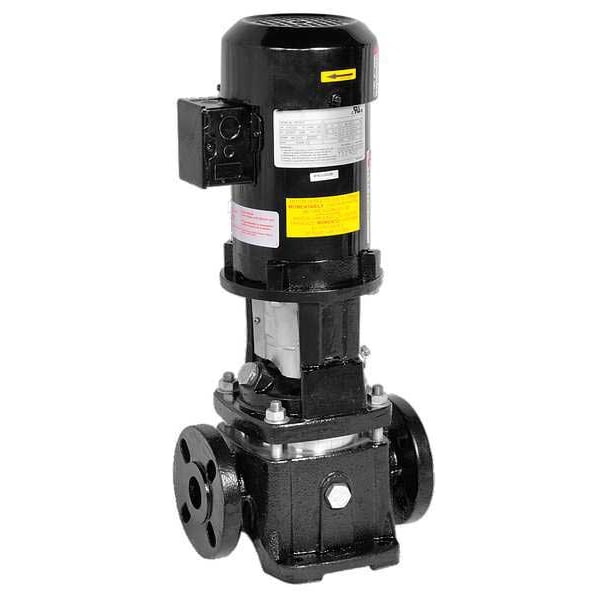

Dayton Booster Pump, 1/2 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 2 Stage 5UWH6 - main

Booster Pump, 1/2 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 2 Stage

  • Mfr # 5UWH6

  • Zoro # G2199705

product price:  $791.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
1/2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Inlet Size - Pumps
1-1/4 in Flanged
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5UWH6
Zoro #
G2199705
UPC #
190735352717
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/4 in Flanged
Outlet Size - Pumps
1-1/4 in Flanged
Manufacturers Warranty Length
1 yr
Width
8 3/4 in
Max. Dia. Solids
5/64 in
Length
9 7/8 in
Height
20 15/16 in
Overall Length
9.88 in
Overall Height
20.94 in
Overall Width
8.75 in
Intake Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Discharge Flange Size
1 1/4 in
Compatible Intake Pipe Size
1 1/4 in
Compatible Discharge Pipe Size
1 1/4 in
Solid Diameter (Maximum)
0.07 in
Solids Diameter - Maximum
0.07 in
Inlet Diameter
1 1/4 in
Discharge Diameter
1 1/4 in

Details

Item
Booster Pump
Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
1/2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Number of Stages - Pumps
2
Max. Pressure - Pumps
27 psi
Housing Material - Pumps
Cast Iron
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Hz
60
Motor Enclosure
Totally Enclosed Fan Cooled (TEFC)
Best Efficiency GPM @ PSI
16 @ 17
Voltage
208-230/460
Stages
2
Housing Material
Cast iron
Motor Ambient Temp. Rating
40 Degrees C
Impeller Type
Closed
Outlet
1-1/4" FNPT
Max. Liquid Temp.
248 Degrees F
GPM @ 10 PSI
21
Bearing Type
Ball
Wetted Materials
Cast Iron, EPDM, Silicon Carbide, Stainless Steel
Suction Lift
0 ft
Max. Pressure
27 psi
Motor Type
3-Phase
Amps
1.7-1.6/0.8 A
Inlet
1-1/4" FNPT
Frame
56c
Pump Mounting Position
Horizontal
Motor RPM
3,450 RPM
Phase
Three
Seal Material
EPDM/Silicon Carbide/Stainless Steel
GPM @ 20 PSI
12
HP
1/2
Agency Compliance
c UL us
Duty
Continuous
Impeller Material
Stainless Steel
Includes
Manual
Max. Case Pressure
362 psi
Standards
cULus Listed
Frequency
60 Hz
Pump Housing Material
Cast Iron
Impeller Design
Closed
Shut Off Pressure (Maximum)
27 psi
Horsepower
1/2 hp
Flow Rate @ 20 psi
12 gpm
Wetted Material
Cast Iron, EPDM, Silicon Carbide, Stainless Steel
Motor Ambient Temperature (Minimum)
40 Degrees F
Nameplate Voltage
230/460V AC
Number of Stages
2
Discharge Type
Flange
Pumping Application
City Water Mains, Cooling Water Systems, Irrigation
Motor Frame Designation
56C
Intake Type
Flange
Suction Lift (Maximum)
0 ft
Duty Cycle
Continuous
Mounting Orientation
Vertical
Compatible with Media Type
Non-Abrasive Liquids, Water
Best Efficiency Pressure
17 psi
For Use With Potable Systems
No
Motor Ambient Temperature (Maximum)
104 Degrees F
Maximum Media Temperature
248 Degrees F
Maximum RPM
3,450 RPM
Flow Rate @ 10 psi
21 gpm
Case Pressure (Maximum)
362 psi
Revolutions Per Minute - Maximum
3,450 RPM
Case Pressure - Maximum
362 psi
Media Temperature - Maximum
248 Degrees F
Inlet Gender
Female
Motor Ambient Temperature - Maximum
104 Degrees F
Shut Off Pressure - Maximum
27 psi
Pump Casing Material
Cast Iron
Motor Design
Three-Phase
Best Efficiency Flow
18 gpm
Media Temperature - Minimum
0 Degrees F
Full Load Current
1.7-1.6/0.8 A
Motor Ambient Temperature - Minimum
40 Degrees F
Power Source
Corded Electric
Inlet Standard
Flange
Installation
Floor Standing
Suction Lift - Maximum
0 ft
Discharge Standard
Flange
Motor Enclosure Design
Totally Enclosed Fan Cooled

Description

Booster Pump, Phase Three, Pump Housing Material Cast Iron, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 1/2 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 10 psi 21 gpm, Flow Rate @ 20 psi 12 gpm, Shut Off Pressure (Maximum) 27 psi, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 1/4 in, Intake Type Flange, Mounting Orientation Vertical, For Use With Potable Systems No, Amps 1.7-1.6/0.8 A, Best Efficiency Pressure 17 psi, Case Pressure (Maximum) 362 psi

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
