  5. Booster Pump, 3 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 17 Stage

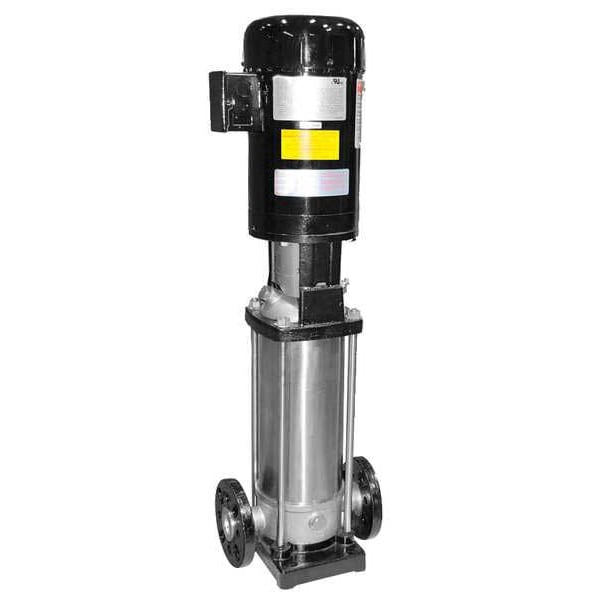

Dayton Booster Pump, 3 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 17 Stage 5UWL6 - main

Booster Pump, 3 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 17 Stage

  • Mfr # 5UWL6

  • Zoro # G1123035

product price:  $2,273.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
3 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Inlet Size - Pumps
1-1/4 in Flanged
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5UWL6
Zoro #
G1123035
UPC #
190735353011
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/4 in Flanged
Outlet Size - Pumps
1-1/4 in Flanged
Length
9 7/8 in
Max. Dia. Solids
5/64 in
Manufacturers Warranty Length
1 yr
Width
9 in
Height
33 5/8 in
Overall Length
9.88 in
Overall Width
9 in
Overall Height
33.63 in
Compatible Discharge Pipe Size
1 1/4 in
Solid Diameter (Maximum)
0.07 in
Compatible Intake Pipe Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Intake Size
1 1/4 in
Discharge Flange Size
1 1/4 in
Inlet Diameter
1 1/4 in
Solids Diameter - Maximum
0.07 in
Discharge Diameter
1 1/4 in

Details

Item
Booster Pump
Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
3 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Number of Stages - Pumps
17
Max. Pressure - Pumps
230 psi
Housing Material - Pumps
Stainless Steel
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Voltage
208-230/460
Outlet
1-1/4" FNPT
Amps
8.4/4.2 A
GPM @ 140 PSI
18
Suction Lift
0 ft
Bearing Type
Ball
Stages
17
Inlet
1-1/4" FNPT
Housing Material
Stainless Steel
Includes
Manual
Motor Enclosure
Totally Enclosed Fan Cooled (TEFC)
Impeller Material
Stainless Steel
Agency Compliance
c UL us
Phase
Three
Duty
Continuous
Max. Case Pressure
245 psi
Motor Ambient Temp. Rating
40 Degrees C
GPM @ 100 PSI
22
GPM @ 160 PSI
16
GPM @ 200 PSI
10
Seal Material
EPDM/Silicon Carbide/Stainless Steel
Frame
56c
Max. Liquid Temp.
248 Degrees F
Motor Type
3-Phase
GPM @ 180 PSI
13
Hz
60
Wetted Materials
EPDM, Silicon Carbide, Stainless Steel
GPM @ 120 PSI
20
Max. Pressure
230 psi
HP
3
Impeller Type
Closed
Motor RPM
3,450 RPM
Pump Mounting Position
Horizontal
Best Efficiency GPM @ PSI
16 @ 164
Standards
cULus Listed
Flow Rate @ 160 psi
16 gpm
Pumping Application
City Water Mains, Cooling Water Systems, Irrigation
Flow Rate @ 140 psi
18 gpm
Maximum Media Temperature
248 Degrees F
Compatible with Media Type
Non-Abrasive Liquids, Water
Horsepower
3 hp
Frequency
60 Hz
Case Pressure (Maximum)
245 psi
Maximum RPM
3,450 RPM
Impeller Design
Closed
Number of Stages
17
Discharge Type
Flange
Wetted Material
EPDM, Silicon Carbide, Stainless Steel
Motor Ambient Temperature (Minimum)
40 Degrees F
For Use With Potable Systems
No
Duty Cycle
Continuous
Flow Rate @ 200 psi
10 gpm
Flow Rate @ 100 psi
22 gpm
Intake Type
Flange
Nameplate Voltage
230/460V AC
Pump Housing Material
Stainless Steel
Best Efficiency Pressure
164 psi
Flow Rate @ 180 psi
13 gpm
Motor Frame Designation
56C
Motor Ambient Temperature (Maximum)
104 Degrees F
Flow Rate @ 120 psi
20 gpm
Mounting Orientation
Vertical
Shut Off Pressure (Maximum)
230 psi
Suction Lift (Maximum)
0 ft
Discharge Standard
Flange
Inlet Standard
Flange
Motor Enclosure Design
Totally Enclosed Fan Cooled
Media Temperature - Minimum
0 Degrees F
Installation
Floor Standing
Suction Lift - Maximum
0 ft
Motor Ambient Temperature - Maximum
104 Degrees F
Media Temperature - Maximum
248 Degrees F
Motor Design
Three-Phase
Revolutions Per Minute - Maximum
3,450 RPM
Motor Ambient Temperature - Minimum
40 Degrees F
Full Load Current
8.4/4.2 A
Case Pressure - Maximum
245 psi
Power Source
Corded Electric
Best Efficiency Flow
16 gpm
Inlet Gender
Female
Shut Off Pressure - Maximum
230 psi
Pump Casing Material
Stainless Steel

Description

Booster Pump, Phase Three, Pump Housing Material Stainless Steel, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 3 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 100 psi 22 gpm, Flow Rate @ 120 psi 20 gpm, Shut Off Pressure (Maximum) 230 psi, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 1/4 in, Intake Type Flange, Mounting Orientation Vertical, For Use With Potable Systems No, Amps 8.4/4.2 A, Best Efficiency Pressure 164 psi, Case Pressure (Maximum) 245 psi

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
