Shop DAYTON

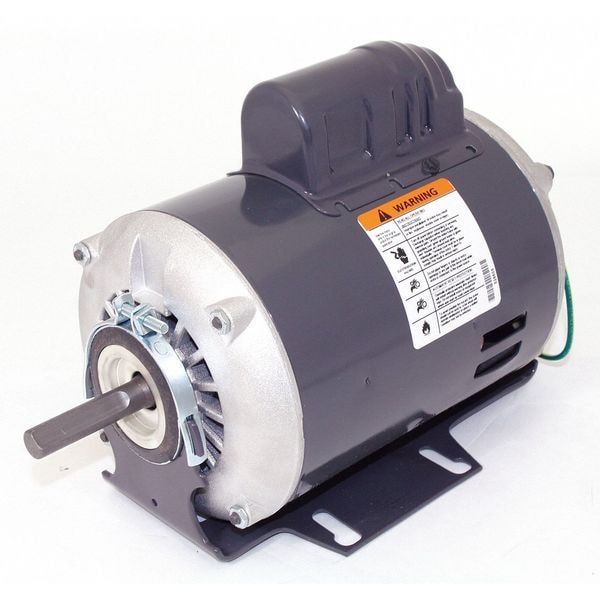

Capacitor-Start Belt Drive Motor, 1/3 HP, 115/230V AC Voltage, 48Z Frame, 1,725 Nameplate RPM

  • Mfr # 6K490
  • Zoro # G1050734
product price:
$
292.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Cradle Base
HP
1/3
RPM Range
1,701-1,800
Voltage
115V AC, 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6K490
Zoro #
G1050734
UPC #
190735366080
Country of Origin
Mexico

Dimensions

Shaft Length
1 7/8 in
Length Less Shaft
9 1/8 in
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Overall Length
10 13/16 in
Manufacturers Warranty Length
1 yr
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Frame Size
48Z

Details

Item
Belt Drive Motor
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Cradle Base
HP
1/3
RPM Range
1,701-1,800
Voltage
115V AC, 230V AC
Frame
48Z
Motor Thermal Protection
Auto
Motor Service Factor
1.35
No. of Speeds
1
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Nameplate RPM
1,725
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified, UL Recognized
Duty
Continuous
Frame Material
Steel
Max. Ambient Temp.
104 Degrees F
Ins. Class
B
Phase
Single
Full Load Amps
5.4/2.7 A
Footnotes
6
Motor Bearings
Ball
Hz
50/60 Hz
Duty Cycle
Continuous
Drive Type
Belt Drive
Manufacturers Warranty
1 yr
Number of Speeds
1
Mounting Position
All Angle
Nameplate Service Factor @ 60 Hz
1.35
Application
Fan/Blower
Frequency
60/50 Hz
Full Load Current @ 60 Hz
5.4/2.7 A
Ambient Temperature - Maximum
40 Degrees C
Product Type
Fan and Blower Motor
Insulation Class
B
Motor Enclosure Type
Open Drip Proof
Bearing Type
Ball
Shaft Design
Flat

Description

Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, 5.4/2.7 A Full Load Amps, 48Z Frame, 60/50 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle
