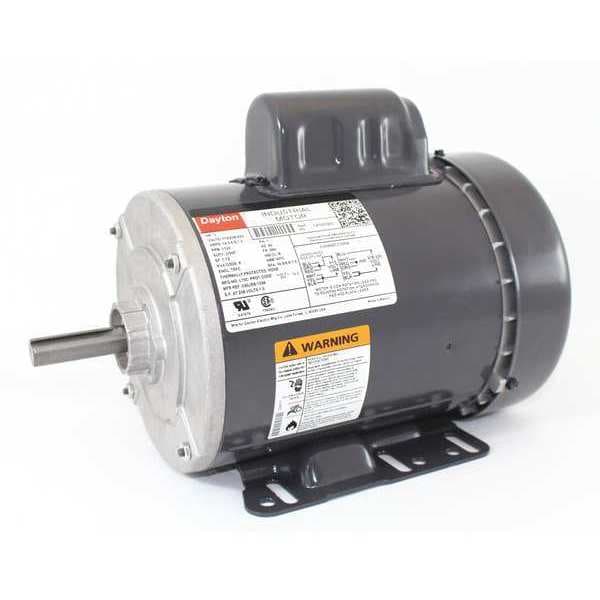

Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56H Frame
Mfr # 1K065
Zoro # G0659732
product price: $384.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1K065
Zoro #
G0659732
UPC #
190735142134
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Overall Length
12 3/8 in
Manufacturers Warranty Length
1 yr
Shaft Length
1 7/8 in
Length Less Shaft
10 1/2 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.0/6.9-7.0 A, 56H Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
