Shop DAYTON

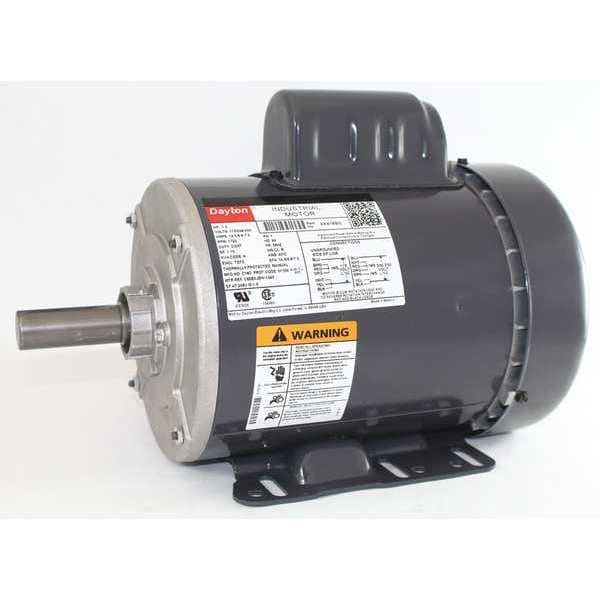

Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56HZ Frame

  • Mfr # 6K418

  • Zoro # G1385562

product price:
$
812.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6K418
Zoro #
G1385562
UPC #
190735365939
Country of Origin
Mexico

Dimensions

Manufacturers Warranty Length
1 yr
Length Less Shaft
10 1/2 in
Overall Length
12 3/4 in
Shaft Length
2 1/4 in
Shaft Dia.
7/8 in
Wire Rope Length
12 3/4 in
Frame Size
56HZ
Shaft Diameter
7/8 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Frame
56HZ
Motor Thermal Protection
Manual
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Nameplate RPM
1,725 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA (225293), UL (E47479)
Ins. Class
B
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Frame Material
Steel
Motor Bearings
Ball
RPM Group
1701-1800
Phase
Single
Full Load Amps
14.0/6.9-7.0 A
Motor Efficiency Group
Standard Efficient
Nominal Efficiency
75.6 %
Hz
60 Hz
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60 Hz
Efficiency Rating
Standard Efficiency (IE1)
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Fan Cooled
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Product Type
General Purpose Motor
Mounting Position
All Angle
Bearing Type
Ball
Application
General Purpose
Full Load Current @ 60 Hz
14.0/6.9-7.0 A
Manufacturers Warranty
1 yr

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.0/6.9-7.0 A, 56HZ Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
