Shop DAYTON

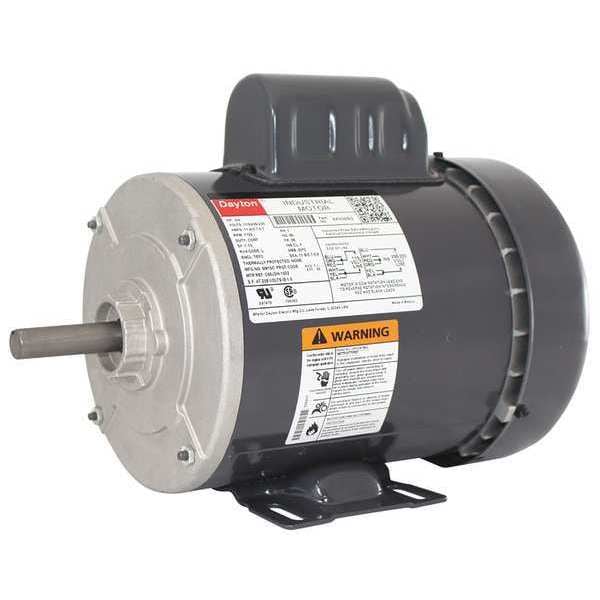

Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56 Frame

  • Mfr # 6K938

  • Zoro # G2127264

product price:  $484.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
3/4 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6K938
Zoro #
G2127264
UPC #
190735366714
Country of Origin
Multiple

Dimensions

Shaft Length
1 7/8 in
Overall Length
11 3/8 in
Length Less Shaft
9 1/2 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
5/8 in
Shaft Diameter
5/8 in
Wire Rope Length
11 3/8 in
Frame Size
56

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
3/4 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Frame
56
Motor Thermal Protection
None
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Nameplate RPM
1,725 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified (156060), UL Recognized (E47479)
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
Includes
Conduit Box
Frame Material
Steel
Phase
Single
Motor Efficiency Group
Standard Efficient
RPM Group
1701-1800
Nominal Efficiency
65 %
Full Load Amps
11.4/5.7-5.7 A
Ins. Class
F
Duty
Continuous
Hz
60 Hz
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Product Type
General Purpose Motor
Application
General Purpose
Efficiency Rating
Standard Efficiency (IE1)
Insulation Class
F
Full Load Current @ 60 Hz
11.4/5.7-5.7 A
Bearing Type
Ball
Manufacturers Warranty
1 yr
Mounting Position
All Angle
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Keyed

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 11.4/5.7-5.7 A, 56 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
