Shop DAYTON

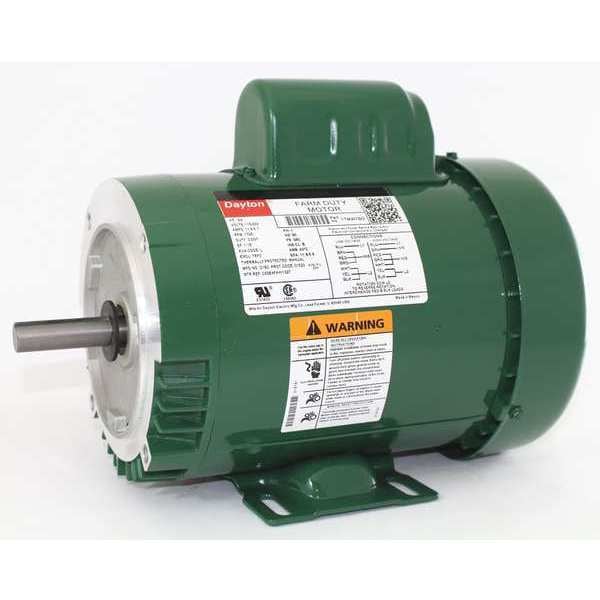

Capacitor-Start High Torque Farm Duty Motor, 3/4 HP, 115/230V AC Voltage, 56C Frame

  • Mfr # 1TMW7BG

  • Zoro # G3152983

product price:  $494.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
HP
3/4 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1TMW7BG
Zoro #
G3152983
UPC #
190735147511
Country of Origin
Mexico

Dimensions

Overall Length
11 15/16 in
Length Less Shaft
10 1/16 in
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Wire Rope Length
11 15/16 in

Details

Item
Farm Duty Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
HP
3/4 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56C
Motor Thermal Protection
Manual
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application
Agriculture
Motor Sub Application
High Torque
Nameplate RPM
1,725 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified (258501), UL Recognized (E37403)
Finish
Enamel-Coated
Full Load Amps
11.4/5.7 A
Duty
Continuous
Includes
Shaft Slinger, Gasketed Conduit Box, Shaft Key, Removable Base
Item - Farm Duty Motors
High Torque Farm Duty Motor
Hz
60 Hz
Phase
Single
Ins. Class
B
Motor Bearings
Ball
Max. Ambient Temperature
40 Degrees C
Nominal Efficiency
67.7 %
Capacitor Required
Capacitor Included
Frame Material
Rolled steel
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
Replacement For
4VZ10, 4VZ11

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 11.4/5.7 A, 56C Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
