Shop DAYTON

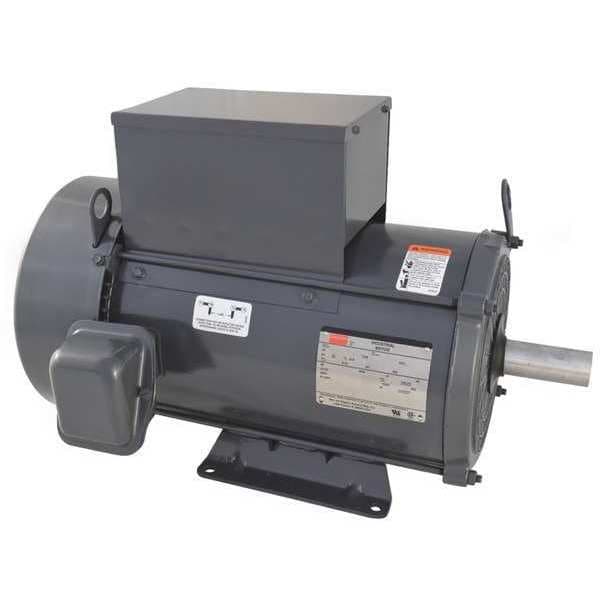

Capacitor-Start/Run General Purpose Motor, 10 hp HP, 230V AC Voltage, 215T Frame

  • Mfr # 5UKH1

  • Zoro # G1216153

product price:
$
2,619.99
/ea
Additional $130.00 delivery surcharge applies per item.
See details

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
10 hp
RPM Range
1,701-1,800
Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5UKH1
Zoro #
G1216153
UPC #
190735351833
Country of Origin
Mexico

Dimensions

Manufacturers Warranty Length
1 yr
Shaft Dia.
1 3/8 in
Overall Length
22 1/16 in
Shaft Length
3 3/8 in
Length Less Shaft
18 1/2 in
Frame Size
215T
Shaft Diameter
1 3/8 in
Wire Rope Length
22 1/16 in
Length
22 1/16 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
10 hp
RPM Range
1,701-1,800
Voltage
230V AC
Frame
215T
Motor Thermal Protection
None
Motor Service Factor
1
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC
Motor Application
General Purpose
Nameplate RPM
1,730 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CSA Certified (258525), UL Recognized (E47479)
Hz
60 Hz
Includes
Conduit Box
RPM Group
1701-1800
Full Load Amps
38.0 A
Phase
Single
Max. Ambient Temp.
40 Degrees C
Motor Efficiency Group
Energy Efficient
Ins. Class
F
Nominal Efficiency
86.9 %
Duty
Continuous
Inverter Rated
Not Inverter Rated
Motor Bearings
Ball
Frame Material
Steel
Footnotes
24, 51
Duty Cycle
Continuous
Inverter Rating
Not Inverter Rated
Efficiency Rating
High Efficiency (IE2)
Insulation Class
F
Mounting Position
All Angle
Bearing Type
Ball
Product Type
General Purpose Motor
Application
General Purpose
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Number of Speeds
1
Full Load Current @ 60 Hz
38.0 A
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Motor Enclosure Type
Totally Enclosed Fan Cooled

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 10 hp HP, Nameplate RPM 1,730 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 38.0 A, 215T Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Inverter Rated Not Inverter Rated
