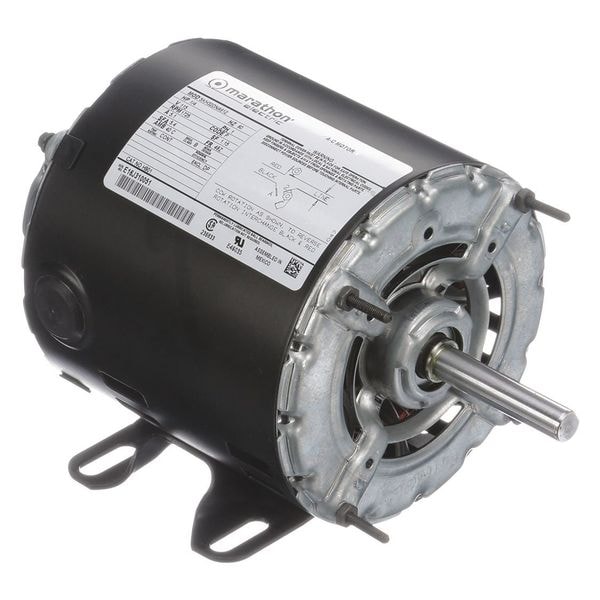

Split-Phase 1/4 hp HP, 48Z Frame, 115V AC Voltage, 1,725 RPM Nameplate RPM 9 3/4 in Overall Length
Mfr # D14B2N4Z
Zoro # G0200334
product price:Â
$
115.99
/ea
Free Shipping & Returns
Key Features
Motor Shaft Design
Flat
Shaft Dia.
1/2 in
HP
1/4 hp
Frame
48Z
Inverter Rated
Not Inverter Rated
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- D14B2N4Z
- Zoro #
- G0200334
- UPC #
- 786382057800
- Country of Origin
- Mexico
Dimensions
- Shaft Dia.
- 1/2 in
- Overall Length
- 9 3/4 in
- Length Less Shaft
- 7 3/8 in
- Shaft Length
- 2 3/8 in
- Shaft Diameter
- 1/2 in
- Frame Size
- 48Z
- Wire Rope Length
- 9 3/4 in
- Length
- 9 3/4 in
Description
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.3 A, 48Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
