Dayton

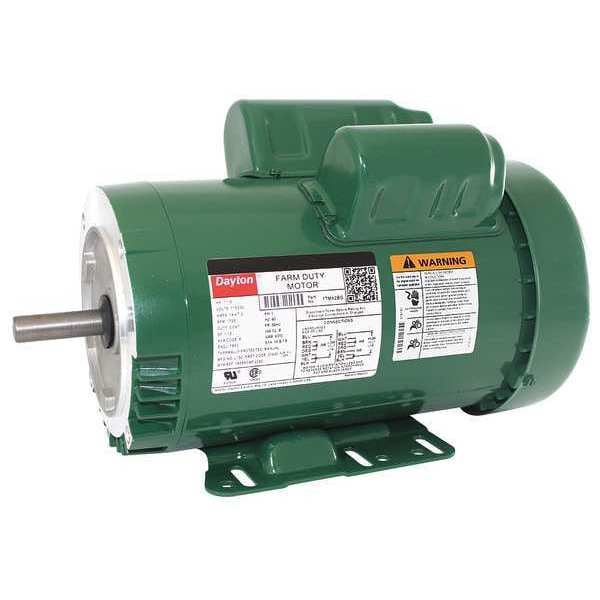

Capacitor-Start/Run High Torque Farm Duty Motor, 1 1/2 HP, 115/230V AC Voltage, 56HC Frame

product price: $562.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Enclosure Design Totally Enclosed Fan-Cooled
  • Motor Mounting Type Face/Base
  • HP 1 1/2
  • RPM Range 1,701-1,800
  • Voltage 115/230V AC
See all product information

Product Information

Dimensions

Shaft Length 1 7/8 in
Shaft Dia. 5/8 in
Overall Length 13 7/8 in
Length Less Shaft 12 in

Details

Item High Torque Farm Duty Motor
Motor Enclosure Design Totally Enclosed Fan-Cooled
Motor Mounting Type Face/Base
HP 1 1/2
RPM Range 1,701-1,800
Voltage 115/230V AC
Frame 56HC
Motor Thermal Protection Manual
Motor Service Factor 1.15
No. of Speeds 1
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application Farm Duty
Motor Sub Application High Torque
Nameplate RPM 1,725
Motor Frame Material Rolled Steel
Motor Mounting Position Horizontal
Motor Shaft Design Keyed
Motor Shaft Rotation CW/CCW
Motor Design Capacitor-Start/Run
Standards CSA Certified (258501), UL Recognized (E37403)
Frame Material Rolled steel
Finish Enamel
Max. Ambient Temperature 40 Degrees C
Full Load Amps 14.4/7.2 A
Ins. Class B
Nominal Efficiency 81.8 %
Hz 60 Hz
Item - Farm Duty Motors High Torque Farm Duty Motor
Includes Shaft Slinger, Gasketed Conduit Box, Shaft Key, Removable Base
Duty Continuous
Motor Bearings Ball
Capacitor Required Included
Phase Single
Max. Ambient Temp. 40 Degrees C
Duty Cycle Continuous
Replacement For 4VZ36, 4VZ37

Description

High Torque Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 14.4/7.2 A, 56HC Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal
