Shop DAYTON

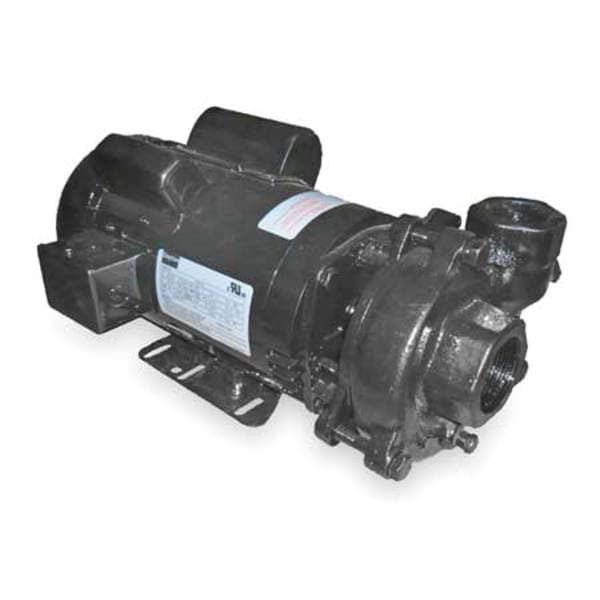

Cast Iron 3 HP Centrifugal Pump 230V

  • Mfr # 2ZWR2

  • Zoro # G1934091

product price:  $1,110.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
3 hp
Voltage - Pumps
240V AC
Phase - Pumps
1
Housing Material - Pumps
Cast Iron
Inlet Size - Pumps
2 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2ZWR2
Zoro #
G1934091
UPC #
190735241851
Country of Origin
India

Dimensions

Inlet Size - Pumps
2 in NPT
Outlet Size - Pumps
1-1/2 in NPT
Length
14 13/16 in
Height
7 in
Width
7 5/8 in
Manufacturers Warranty Length
1 yr
Max. Dia. Solids
1/2 in
Overall Length
17.5 in
Overall Height
7 in
Overall Width
8 in
Solid Diameter (Maximum)
0.5 in
Compatible Discharge Pipe Size
1 1/2 in
Compatible Intake Pipe Size
2 in
Manufacturer Warranty Length
1 yr
Impeller Diameter
117 1/2 mm
Shaft Outer Diameter
5/8 in
Inlet Diameter
2 in
Discharge Diameter
1 1/2 in
Motor Frame Size
56J

Details

HP - Pumps
3 hp
Voltage - Pumps
240V AC
Phase - Pumps
1
Housing Material - Pumps
Cast Iron
Max. Pressure - Pumps
32 psi
Max. Head
74 ft
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Outlet
1-1/2" NPT
Port Rotation
4 Position Increments
GPM of Water @ 25 Ft. of Head
154
Max. Case Pressure
200 psi
GPM of Water @ 20 Ft. of Head
162
HP
3
GPM of Water @ 50 Ft. of Head
110
Impeller Material
Cast Iron
Motor Enclosure
Totally Enclosed Fan Cooled
Best Efficiency GPM @ Head
95 gpm @ 57 ft
Voltage
230
GPM of Water @ 10 Ft. of Head
170
Item
Centrifugal Pump
Max. Pressure
32.03 psi
Agency Compliance
c UL us
Max. Specific Gravity
1.0
Hz
60
Housing Material
Cast iron
GPM of Water @ 30 Ft. of Head
146
Best Efficiency Range GPM @ Head
30 to 140 gpm @ 75 to 35 ft
Duty
Continuous
Inlet Pressure
200 psi
Seal Material
Buna-N
Impeller Type
Semi Open
Includes
Manual
GPM of Water @ 60 Ft. of Head
82
GPM of Water @ 15 Ft. of Head
166
Min. GPM @ Head
35 gpm @ 70 ft
Inlet
2" NPT
GPM of Water @ 70 Ft. of Head
35
Max. GPM @ Head
170 gpm @ 10 ft
Frame
56J
Item - Straight Centrifugal Pumps
Straight Centrifugal High Flow Pump
GPM of Water @ 40 Ft. of Head
130
Max. Liquid Temp.
200 Degrees F
Amps
12.5
Wetted Materials
Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
Bearing Type
Ball
Motor Type
Capacitor-Start
Phase
Single
Motor RPM
3450
Standards
UL Recognized Motor
Flow Rate @ 50 ft of Head (Maximum)
110 gpm
Flow Rate @ 60 ft of Head (Maximum)
82 gpm
Shaft Material
304 Stainless Steel
Flow Rate @ 70 ft of Head (Maximum)
30 gpm
Best Efficiency Flow
95 gpm
Discharge Type
NPT
Feet of Head (Minimum)
10 ft
Pump Housing Material
Cast Iron
Seal Type
Mechanical
Minimum Media Temperature
40 Degrees F
Maximum Flow Rate
170 gpm
Compatible with Media Type
Non-Flammable Liquids
Impeller Design
Semi-Open
Flow Rate @ 15 ft of Head (Maximum)
166 gpm
Discharge Rotation
90 Degrees Increments
Duty Cycle
Continuous
Specific Gravity (Maximum)
1
Horsepower
3 hp
Wetted Material
Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
Maximum Media Temperature
200 Degrees F
Flow Rate @ 20 ft of Head (Maximum)
162 gpm
Pumping Application
Boiler Feed, Booster Services, Chemical Transfer, Condensate Return, Filtration, Irrigation, Jockey Pump Services, Liquid Transfer, Spraying Systems, Water Circulation
Minimum Flow Rate
35 gpm
Flow Rate @ 30 ft of Head (Maximum)
146 gpm
Maximum Feet of Head
74 ft
Nameplate Voltage
230V AC
For Use With Potable Systems
No
Shut Off Pressure (Maximum)
32 psi
Flow Rate @ 10 ft of Head (Maximum)
170 gpm
Frequency
60 Hz
Intake Type
NPT
Motor Frame Designation
56J
Flow Rate @ 40 ft of Head (Maximum)
130 gpm
Best Efficiency Head
57 ft
Maximum RPM
3,450 RPM
Volute Material
Cast Iron
Flow Rate @ 10 ft of Head - Maximum
170 gpm
Discharge Position
Offset
Shaft Seal Material
Buna-N
Discharge Orientation
Top
Full Load Current
12.5 A
Motor Speed - Maximum
3,450 RPM
Media Temperature - Maximum
200 Degrees F
Mounting Orientation
Horizontal
Hazardous Location Class
Not Rated
Discharge Rotation Increments
0 Degrees
Chemical Compatibility
Non-Flammable Liquids
Inlet Position
Center
Drive Coupling Type
No Coupling
Electrical Connection Type
Hardwired
Flow Rate (Maximum)
170 gpm
Case Pressure - Maximum
100 psi
Shut Off Pressure - Maximum
32 psi
Ambient Temperature - Maximum
40 Degrees C
Media Temperature - Minimum
40 Degrees F
Thermal Overload Protection
Yes
Viscosity (Maximum)
100 SUS
Shaft Seal Type
Mechanical
Priming
Manual
Flow Rate (Minimum)
35 gpm
Inlet Orientation
Side
Feet of Head (Maximum)
74 ft
Number of Stages
1

Description

Centrifugal Pump, Phase Single, Pump Housing Material Cast Iron, Horsepower 3 hp, Nameplate Voltage 230V AC, Flow Rate @ 40 ft of Head (Maximum) 130 gpm, Flow Rate @ 60 ft of Head (Maximum) 82 gpm, Flow Rate @ 80 ft of Head (Maximum) Not Applicable, Maximum Feet of Head 74 ft, Compatible Intake Pipe Size 2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/2 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Maximum Flow Rate 170 gpm
