Shop MEZIERE

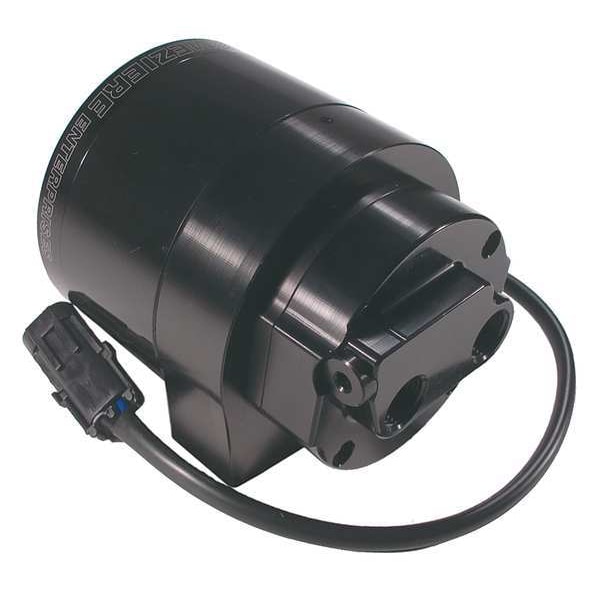

Aluminum 5/16 HP Centrifugal Pump 12V

  • Mfr # WPX711

  • Zoro # G4630455

product price:
$
784.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
5/16 hp
Voltage - Pumps
12V DC
Phase - Pumps
1
Housing Material - Pumps
Aluminum
Inlet Size - Pumps
3/8 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WPX711
Zoro #
G4630455
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size - Pumps
3/8 in NPT
Outlet Size - Pumps
3/8 in NPT
Manufacturers Warranty Length
1 yr
Width
4 in
Height
4 7/8 in
Length
4 in
Overall Height
4.8 in
Compatible Intake Pipe Size
3/8 in
Overall Length
4 in
Compatible Discharge Pipe Size
3/8 in
Overall Width
4 in
Manufacturer Warranty Length
1 yr
Discharge Diameter
3/8 in
Shaft Outer Diameter
47/100 in
Cord Length
12 in
Impeller Diameter
1 7/16 in
Inlet Diameter
3/8 in
Wire Rope Length
4 in

Details

HP - Pumps
5/16 hp
Voltage - Pumps
12V DC
Phase - Pumps
1
Housing Material - Pumps
Aluminum
Max. Pressure - Pumps
35 psi
Max. Head
92 ft
Motor Enclosure - Pumps
Open Dripproof
GPM of Water @ 60 Ft. of Head
0.73
GPM of Water @ 50 Ft. of Head
0.96
Best Efficiency GPM @ Head
0.85 gpm @ 58 ft
GPM of Water @ 20 Ft. of Head
1.75
Bearing Type
Ball
Motor RPM
2000
Includes
Adjustable Pressure Relief Valve
GPM @ 7 Feet of Head
1.8
Max. Pressure
35 psi
Wetted Materials
Anodized Aluminum, Carbon/Ceramic, Stainless Steel, Steel Bearing
GPM of Water @ 15 Ft. of Head
1.58
Item
Vehicle Pump
Outlet
3/8" NPT
Amps
10/13.5
Max. Liquid Temp.
185 Degrees F
Impeller Type
Gerotor
GPM of Water @ 80 Ft. of Head
0.16
GPM of Water @ 70 Ft. of Head
0.28
Motor Enclosure
Open Drip Proof
GPM of Water @ 30 Ft. of Head
1.42
Max. Specific Gravity
1.16
GPM of Water @ 25 Ft. of Head
1.5
Inlet
3/8" NPT
Impeller Material
Stainless Steel
Best Efficiency Range GPM @ Head
0.80 to 1.25 gpm @ 58 to 35 ft
Housing Material
Aluminum
Inlet Pressure
50 psi
Voltage
12VDC
Max. GPM @ Head
2 @ 4 ft
GPM of Water @ 0 Ft. of Head
2.05
Seal Material
Carbon, Ceramic
GPM of Water @ 5 Ft. of Head
2.0
HP
5/16
Phase
Single
GPM of Water @ 40 Ft. of Head
1.13
GPM of Water @ 10 Ft. of Head
1.65
Duty
Continuous
Max. Case Pressure
70 psi
Item - Straight Centrifugal Pumps
Straight Centrifugal High Flow Pump
Motor Type
Brushed
GPM @ 1 Ft. of Head
2.03
Min. GPM @ Head
0.3 @ 70 ft
GPH of Water @ 5 Ft. of Head
2.0
Flow Rate @ 70 ft of Head (Maximum)
0.3 gpm
Intake Type
NPT
For Use With Potable Systems
No
Flow Rate @ 5 ft of Head (Maximum)
2 gpm
Duty Cycle
Continuous
Wetted Material
Aluminum, Carbon, Ceramic, Stainless Steel, Steel
Impeller Design
Gerotor
Pump Housing Material
Aluminum
Flow Rate @ 20 ft of Head (Maximum)
1.8 gpm
Maximum Feet of Head
92 ft
Discharge Type
NPT
NPSHr
115.5 ft
Flow Rate @ 30 ft of Head (Maximum)
1.4 gpm
Priming
Manual
Seal Type
Double Lip
Nameplate Voltage
12V DC
Flow Rate @ 80 ft of Head (Maximum)
0.2 gpm
Flow Rate @ 60 ft of Head (Maximum)
0.7 gpm
Flow Rate @ 10 ft of Head (Maximum)
1.65 gpm
Flow Rate @ 50 ft of Head (Maximum)
1 gpm
Best Efficiency Flow
0.9 gpm
Maximum RPM
2,000 RPM
Flow Rate @ 1 ft of Head (Maximum)
2 gpm
Specific Gravity (Maximum)
1.16
Flow Rate @ 40 ft of Head (Maximum)
1.1 gpm
Features
Double-Lip Seal, Preset Pressure Relief Valve and a Steel Gerotor
Shut Off Pressure (Maximum)
35 psi
Best Efficiency Head
58 ft
Horsepower
5/16 hp
Shaft Material
Stainless Steel
Volute Material
Aluminum
Full Load Current
13 A
Inlet Orientation
Side
Thermal Overload Protection
No
Shaft Seal Material
Carbon/Ceramic
Hazardous Location Class
Not Rated
Chemical Compatibility
Water, Water-Glycol
Feet of Head (Maximum)
85 ft
Pumping Application
Cooling and Heat Transfer
Media Temperature - Maximum
185 Degrees F
Discharge Orientation
Side
Flow Rate @ 10 ft of Head - Maximum
1.7 gpm
Pump Design
Inline
Flow Rate (Maximum)
2 gpm
Motor Speed - Maximum
2,000 RPM
Discharge Rotation Increments
0 Degrees
Shaft Seal Type
Lip
Case Pressure - Maximum
70 psia
Media Temperature - Minimum
35 Degrees F
Drive Coupling Type
Rigid Coupling
Number of Stages
1

Description

Vehicle Pump, Phase Single, Pump Housing Material Aluminum, Horsepower 5/16 hp, Nameplate Voltage 12V DC, Flow Rate @ 40 ft of Head (Maximum) 1.13 gpm, Flow Rate @ 60 ft of Head (Maximum) 0.73 gpm, Flow Rate @ 80 ft of Head (Maximum) 0.16 gpm, Maximum Feet of Head 92 ft, Compatible Intake Pipe Size 3/8 in, Intake Type NPT, Compatible Discharge Pipe Size 3/8 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Flow Rate @ 5 ft of Head (Maximum) 2 gpm
