Shop DAYTON

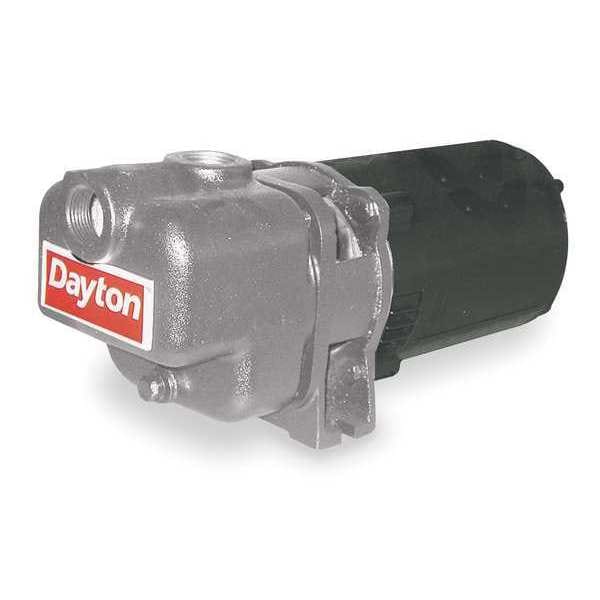

Centrifugal Pump, 1 1/2 hp, 230/460V AC, 3 Phase, 96 ft Max Head

  • Mfr # 4UA74

  • Zoro # G2418026

product price:  $1,848.99
/ea
Free Shipping & Returns

Key Features

Item - Self Priming Pumps
Self Priming Centrifugal Pump
Inlet
1-1/2 in NPT
HP - Pumps
1 1/2 hp
Voltage - Pumps
230/460V AC
Outlet
1-1/2 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
4UA74
Zoro #
G2418026
UPC #
190735334812
Country of Origin
India

Dimensions

Outlet Size - Pumps
1-1/2 in NPT
Max. Dia. Solids - Pumps
1/8 in
Inlet Size - Pumps
1-1/2 in NPT
Manufacturers Warranty Length
1 yr
Length
16 7/8 in
Width
6 7/8 in
Max. Dia. Solids
1/8"
Height
9 1/8 in
Overall Length
16.8 in
Overall Height
9.1 in
Overall Width
6.8 in
Compatible Discharge Pipe Size
1 1/2 in
Compatible Intake Pipe Size
1 1/2 in
Solid Diameter (Maximum)
0.13 in
Impeller Diameter
120 7/10 mm
Inlet Diameter
1 1/2 in
Shaft Outer Diameter
5/8 in
Motor Frame Size
56J
Manufacturer Warranty Length
1 yr
Discharge Diameter
1 1/2 in

Details

Item - Self Priming Pumps
Self Priming Centrifugal Pump
Item
Centrifugal Pump
Inlet
1-1/2 in NPT
HP - Pumps
1 1/2 hp
Voltage - Pumps
230/460V AC
Outlet
1-1/2 in NPT
HP
1-1/2
Phase - Pumps
3
Wetted Materials
Stainless Steel
Voltage
230/460
Max. Head - Pumps
96 ft
Volute Material
316 Stainless Steel
Best Efficiency Range GPM @ Head
41 to 67 gpm @ 80 to 56 ft
Seal Material
Carbon, Ceramic, Viton
Suction Lift
20 ft.
Max. Pressure - Pumps
41 psi
Motor Enclosure - Pumps
Open Dripproof
Motor RPM
3,500 RPM
Housing Material - Pumps
316 Stainless Steel
Amps
3.9/2.0
GPM of Water @ 40 Ft. of Head
74
Max. Case Pressure
165 psi
Max. Specific Gravity
1.0
Includes
Manual
Self-Priming
Yes
Motor Design
Three-Phase
Housing Material
Stainless steel
Impeller Material
Stainless Steel
Port Rotation
No
Max. Liquid Temp.
200 Degrees F
Inlet Pressure
100 psi
Agency Compliance
c UL us
Max. Temp - Pumps
200 Degrees F
Motor Type
3-Phase
GPM of Water @ 15 Ft. of Head
85
GPM of Water @ 10 Ft. of Head
88
GPM of Water @ 20 Ft. of Head
82
GPM of Water @ 50 Ft. of Head
70
Duty
Continuous
Max. Pressure
41.5 psi
Duty - Pumps
Continuous
Frame
56J
Suction Lift - Pumps
20 ft
Hz
60
Max. Head
96 ft.
GPM of Water @ 30 Ft. of Head
78
Motor Enclosure
Open Drip Proof
Bearing Type
Ball
Impeller Type
Semi Open
Phase
Three
Port Rotation - Pumps
No
Standards
UL Recognized Motor
Seal Type
Mechanical
Shaft Material
Stainless Steel
Flow Rate @ 70 ft of Head (Maximum)
35 gpm
Best Efficiency Head
80 ft
Flow Rate @ 40 ft of Head (Maximum)
61 gpm
Flow Rate @ 20 ft of Head (Maximum)
74 gpm
Pump Housing Material
Stainless Steel
Compatible with Media Type
Non-Flammable Liquids
Wetted Material
Stainless Steel
Flow Rate @ 30 ft of Head (Maximum)
70 gpm
Frequency
60 Hz
Flow Rate @ 10 ft of Head (Maximum)
68 gpm
Duty Cycle
Continuous
Flow Rate @ 80 ft of Head (Maximum)
22 gpm
Impeller Design
Semi-Open
Specific Gravity (Maximum)
1
Intake Type
NPT
Best Efficiency Flow
67 gpm
Maximum Feet of Head
96 ft
Pumping Application
Chemical Transfer, Decorative Water, Dewatering, Irrigation, Liquid Transfer
Maximum Flow Rate
68 gpm
Maximum RPM
3,500 RPM
Minimum Flow Rate
20 gpm
Horsepower
1 1/2 hp
Flow Rate @ 60 ft of Head (Maximum)
44 gpm
Flow Rate @ 50 ft of Head (Maximum)
52 gpm
Minimum Media Temperature
40 Degrees F
Flow Rate @ 15 ft of Head (Maximum)
75 gpm
Priming
Self-Priming
Suction Lift (Maximum)
20 ft
Feet of Head (Minimum)
10 ft
For Use With Potable Systems
No
Discharge Type
NPT
Motor Frame Designation
56J
Nameplate Voltage
230/460V AC
Shut Off Pressure (Maximum)
41 psi
Inlet Orientation
Side
Case Pressure - Maximum
100 psi
Shaft Seal Type
Mechanical
Hazardous Location Class
Not Rated
Feet of Head (Maximum)
96 ft
Shut Off Pressure - Maximum
41 psi
Shaft Seal Material
Carbon/Ceramic/FKM
Flow Rate (Maximum)
77 gpm
Mounting Orientation
Horizontal
Discharge Rotation Increments
0 Degrees
Media Temperature - Minimum
40 Degrees F
Ambient Temperature - Maximum
40 Degrees C
Chemical Compatibility
Non-Flammable Liquids
Flow Rate @ 10 ft of Head - Maximum
68 gpm
Viscosity (Maximum)
100 SUS
Media Temperature - Maximum
200 Degrees F
Drive Coupling Type
No Coupling
Electrical Connection Type
Hardwired
Discharge Orientation
Top
Flow Rate (Minimum)
22 gpm
Inlet Position
Center
Full Load Current
3.9/2.0 A
Motor Speed - Maximum
3,450 RPM
Suction Lift - Maximum
20 ft
Discharge Position
Center
Number of Stages
1
Thermal Overload Protection
Yes

Description

Centrifugal Pump, Phase Three, Pump Housing Material Stainless Steel, Horsepower 1 1/2 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 62 gpm, Flow Rate @ 60 ft of Head (Maximum) 57 gpm, Flow Rate @ 80 ft of Head (Maximum) 40 gpm, Maximum Feet of Head 96 ft, Compatible Intake Pipe Size 1 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/2 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Maximum Flow Rate 68 gpm, Flow Rate @ 10 ft of Head (Maximum) 68 gpm
