Shop LITTLE GIANT PUMP

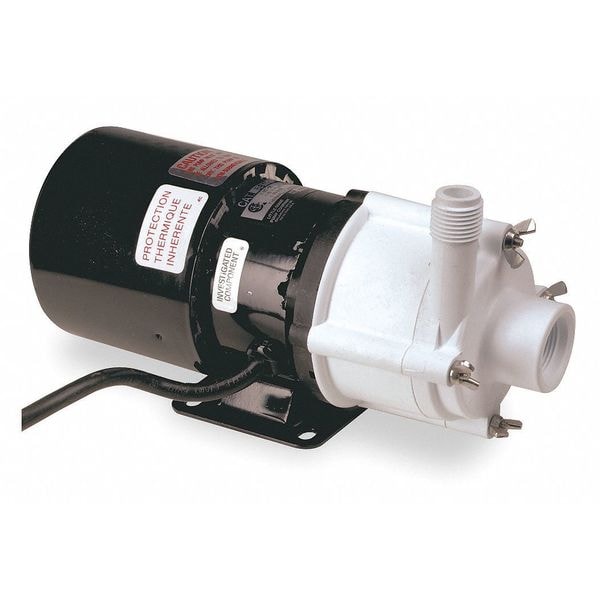

Magnetic Drive Pump, 1/12 HP, Glass-Filled Polypropylene, 115V, 3/4 in FPT, Single Phase

  • Mfr # 581503

  • Zoro # G2191506

product price:
$
249.99
/ea
Free Shipping & Returns

Key Features

HP
1/12 hp
Voltage
115
Inlet
3/4 in FPT
Outlet
1/2 in MPT
Max. Head
21.9 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
581503
Zoro #
G2191506
UPC #
010121819351
Country of Origin
Mexico

Dimensions

Length
9.8 in
Width
4 in
Cord Length
6 ft
Height
5 in
Overall Height
4.9 in
Overall Width
3.9 in
Overall Length
9.8 in
Intake Pipe Size
5/8 in
Discharge Pipe Size
1/2 in
Manufacturers Warranty Length
1 yr
Inlet Diameter
5/8 in
Impeller Diameter
1 83/100 in
Motor Frame Size
3.3
Discharge Diameter
1/2 in
Wire Rope Length
9.8 in

Details

Item
Magnetic Drive Pump
HP
1/12 hp
Voltage
115
Inlet
3/4 in FPT
Outlet
1/2 in MPT
Max. Head
21.9 ft
Housing Material
Glass-Filled Polypropylene
GPM of Water @ 3 Ft. of Head
11.8 gpm
Max. Viscosity
100 SSU
Temp. @ 30 psig
70 Degrees F
Motor Type
Shaded Pole
Design
Gravity-feed, Requires the Pump Inlet to be Lower than Liquid Level
Series
MD-SC
Temp. @ 0 psig
150 Degrees F
Application
For Mild Chemicals at Moderate Temperature, Eliminates Seal-caused Friction Loss, Wear, Contamination and Leakage
Impeller Material
Polypropylene
Temp. @ 20 psig
100 Degrees F
Mounting
Horizontal
Gasket Material
Buna-N
Motor Enclosure
Open Air Over
Full Load Amps
2.4 A
Cord Type
3-conductor SJP
GPM of Water @ 6 Ft. of Head
11 gpm
Bearing Type
Thrust
GPM of Water @ 15 Ft. of Head
7.1 gpm
GPM of Water @ 9 Ft. of Head
10 gpm
Temp. @ 10 psig
120 Degrees F
Max. Specific Gravity
1.1
Full Load Current
2.4 A
Flow Rate @ 18 ft of Head (Maximum)
4.5 gpm
Specific Gravity (Maximum)
1.1
Horsepower (Maximum)
1/12 hp
Frequency
60 Hz
Ambient Temperature (Maximum)
77 Degrees F
Nameplate Voltage
115V AC
Flow Rate @ 6 ft of Head (Maximum)
11.1 gpm
Flow Rate @ 9 ft of Head (Maximum)
10 gpm
Intake Pipe Type
Hose
Motor Mounting Type
Horizontal
Feet of Head (Maximum)
21.9 ft
Operating Pressure (Maximum)
9.48 psi
Media Temperature (Maximum)
150 Degrees F
Discharge Pipe Type
NPT
Flow Rate @ 15 ft of Head (Maximum)
7 gpm
Phase
Single
Flow Rate @ 3 ft of Head (Maximum)
11.8 gpm
Viscosity (Maximum)
100 SUS
Media Temperature - Maximum
150 Degrees F
Priming
Manual
Pump Drive Configuration
Close-Coupled
Mounting Orientation
Horizontal
Pump Design
End Suction
Pumping Application
Chemical Transfer
Case Pressure - Maximum
9.5 psi
Ambient Temperature - Maximum
77 Degrees F
Drive Coupling Type
Magnetic Coupling
Hazardous Location Class
Not Rated
Flow Rate (Maximum)
12.5 gpm
Best Efficiency Flow
8 gpm
Shaft Seal Type
Sealless
Best Efficiency Head
14 ft
Pump Mounting Style
Base-Mounted
Chemical Compatibility
Ambient Temperature - Minimum
32 Degrees F
Inlet Standard
Hose
Media Temperature - Minimum
32 Degrees F
Shut Off Pressure - Maximum
9.5 psi
Number of Stages
1

Description

The LITTLE GIANT PUMP 581503 is an MD-SC Series magnetic drive pump for in-line, non-submersed use with semi-corrosive chemicals and solutions. It uses a leak-proof, seal-less magnetic drive and a 115V AC, single-phase, 1/12 hp open fan-cooled motor with a 6 ft power cord and 3-prong molded plug. This gravity-feed pump requires the inlet to be lower than the liquid level and provides up to 750 GPH at 1 ft of rise, with a maximum head of 21.9 ft.

Key Features:

  • Seal-less magnetic drive: Eliminates seal-caused friction loss, wear, contamination, and leakage.
  • Flow performance: Delivers up to 11.8 gpm at 3 ft of head, 11.1 gpm at 6 ft, 10 gpm at 9 ft, and 7 gpm at 15 ft.
  • Motor: 1/12 hp shaded pole motor with open fan-cooled enclosure and thermal protection.
  • Material construction: Glass-filled polypropylene housing, volute, impeller, and magnet housing.
  • Internal components: Nitrile (Buna-N) O-ring with ceramic thrust washers and shaft.
  • Connection sizes: 3/4 in FPT inlet and 1/2 in MPT outlet.
  • Fluid limits: Handles liquids up to 150 degrees F, with maximum specific gravity of 1.1 and maximum viscosity of 100 SSU.
  • Operating setup: Horizontal mounting design for gravity-feed applications.
  • Electrical: 115V AC, 60 Hz, single phase, 2.4 A full load current.
  • Dimensions: Approximately 9.8 in long, 3.9 in wide, and 4.9 in high.
