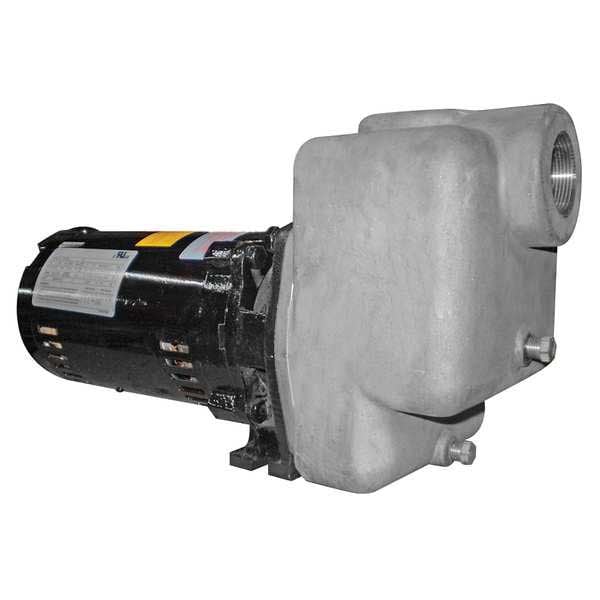

Centrifugal Pump, 1 hp, 208 to 230/460V AC, 3 Phase, 90 ft Max Head

  • Mfr # 5GUP3

  • Zoro # G1269816

product price:
$
1,369.99
/ea
Free Shipping & Returns

Key Features

Item - Self Priming Pumps
Self Priming Centrifugal Pump
HP - Pumps
1 hp
Inlet
1-1/2 in NPT
Outlet
1-1/2 in NPT
Voltage - Pumps
208 to 230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5GUP3
Zoro #
G1269816
UPC #
190735344071
Country of Origin
India

Dimensions

Outlet Size - Pumps
1-1/2 in NPT
Max. Dia. Solids - Pumps
1/8 in
Inlet Size - Pumps
1-1/2 in NPT
Max. Dia. Solids
1/8"
Length
16.8 in
Width
6 7/8 in
Height
9 1/8 in
Manufacturers Warranty Length
1 yr
Overall Width
6.8 in
Overall Length
16.8 in
Overall Height
9.1 in
Compatible Intake Pipe Size
1 1/2 in
Compatible Discharge Pipe Size
1 1/2 in
Solid Diameter (Maximum)
0.13 in
Inlet Diameter
1 1/2 in
Motor Frame Size
56J
Impeller Diameter
4 11/16 in
Shaft Outer Diameter
5/8 in
Discharge Diameter
1 1/2 in
Manufacturer Warranty Length
1 yr
Wire Rope Length
16.8 in

Details

Item
Centrifugal Pump
Item - Self Priming Pumps
Self Priming Centrifugal Pump
HP - Pumps
1 hp
Inlet
1-1/2 in NPT
Outlet
1-1/2 in NPT
Voltage - Pumps
208 to 230/460V AC
Phase - Pumps
3
HP
1
Wetted Materials
Carbon, Ceramic, Stainless Steel, Viton
Max. Head - Pumps
90 ft
Voltage
208-230/460
Volute Material
316 Stainless Steel
Seal Material
Carbon, Ceramic, Viton
Best Efficiency Range GPM @ Head
39 to 51 gpm @ 70 to 58 ft
Suction Lift
20 ft.
Max. Pressure - Pumps
39 psi
Motor Enclosure - Pumps
Open Dripproof
Motor RPM
3,450 RPM
Housing Material - Pumps
316 Stainless Steel
Frame
56J
Port Rotation - Pumps
No
Max. Head
90 ft.
Max. Pressure
38.9 psi
GPM of Water @ 20 Ft. of Head
74
Amps
3.7-3.2/1.6
Duty - Pumps
Continuous
Max. Specific Gravity
1.0
Port Rotation
No
GPM of Water @ 30 Ft. of Head
72
Self-Priming
Yes
Motor Enclosure
Open Drip Proof
GPM of Water @ 15 Ft. of Head
75
Impeller Material
Stainless Steel
Max. Temp - Pumps
200 Degrees F
Inlet Pressure
100 psi
Suction Lift - Pumps
20 ft
Impeller Type
Semi Open
Includes
Manual
Hz
60
GPM of Water @ 50 Ft. of Head
59
GPM of Water @ 40 Ft. of Head
67
Housing Material
Stainless steel
Phase
Three
Motor Type
3-Phase
GPM of Water @ 10 Ft. of Head
76
Bearing Type
Ball
Duty
Continuous
Motor Design
Three-Phase
Max. Liquid Temp.
200 Degrees F
Agency Compliance
c UL us
Max. Case Pressure
165 psi
Standards
UL Recognized Motor
Shaft Material
Stainless Steel
Seal Type
Mechanical
Minimum Media Temperature
40 Degrees F
Pump Housing Material
Stainless Steel
Flow Rate @ 80 ft of Head (Maximum)
13 gpm
Flow Rate @ 60 ft of Head (Maximum)
40 gpm
Compatible with Media Type
Non-Flammable Liquids
Best Efficiency Head
70 ft
Horsepower
1 hp
Intake Type
NPT
Flow Rate @ 50 ft of Head (Maximum)
50 gpm
Flow Rate @ 70 ft of Head (Maximum)
30 gpm
Frequency
60 Hz
Maximum Flow Rate
76 gpm
Flow Rate @ 10 ft of Head (Maximum)
76 gpm
Flow Rate @ 30 ft of Head (Maximum)
64 gpm
Shut Off Pressure (Maximum)
39 psi
Wetted Material
Carbon, Ceramic, Stainless Steel, Viton
Suction Lift (Maximum)
20 ft
Flow Rate @ 20 ft of Head (Maximum)
68 gpm
Flow Rate @ 15 ft of Head (Maximum)
70 gpm
Minimum Flow Rate
23 gpm
Duty Cycle
Continuous
Motor Frame Designation
56J
For Use With Potable Systems
No
Nameplate Voltage
230/460V AC
Impeller Design
Semi-Open
Specific Gravity (Maximum)
1
Maximum Feet of Head
90 ft
Discharge Type
NPT
Priming
Self-Priming
Flow Rate @ 40 ft of Head (Maximum)
58 gpm
Maximum RPM
3,500 RPM
Feet of Head (Minimum)
10 ft
Pumping Application
Chemical Transfer, Decorative Water, Dewatering, Irrigation, Liquid Transfer
Best Efficiency Flow
51 gpm
Full Load Current
3.2/1.6 A
Suction Lift - Maximum
20 ft
Electrical Connection Type
Hardwired
Chemical Compatibility
Non-Flammable Liquids
Shaft Seal Material
Carbon/Ceramic, FKM
Feet of Head (Maximum)
90 ft
Flow Rate (Maximum)
76 gpm
Shut Off Pressure - Maximum
39 psi
Inlet Position
Center
Viscosity (Maximum)
100 SUS
Flow Rate @ 10 ft of Head - Maximum
76 gpm
Shaft Seal Type
Mechanical
Discharge Rotation Increments
0 Degrees
Case Pressure - Maximum
100 psi
Motor Speed - Maximum
3,450 RPM
Mounting Orientation
Horizontal
Media Temperature - Minimum
40 Degrees F
Number of Stages
1
Ambient Temperature - Maximum
40 Degrees C
Media Temperature - Maximum
200 Degrees F
Drive Coupling Type
No Coupling
Flow Rate (Minimum)
23 gpm
Discharge Orientation
Top
Inlet Orientation
Side
Discharge Position
Center
Thermal Overload Protection
Yes
Hazardous Location Class
Not Rated

Description

Centrifugal Pump, Phase Three, Pump Housing Material Stainless Steel, Horsepower 1 hp, Nameplate Voltage 208-230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 67 gpm, Flow Rate @ 60 ft of Head (Maximum) 49 gpm, Flow Rate @ 80 ft of Head (Maximum) 23 gpm, Maximum Feet of Head 90 ft, Compatible Intake Pipe Size 1 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/2 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Maximum Flow Rate 76 gpm, Flow Rate @ 10 ft of Head (Maximum) 76 gpm
