Shop DAYTON

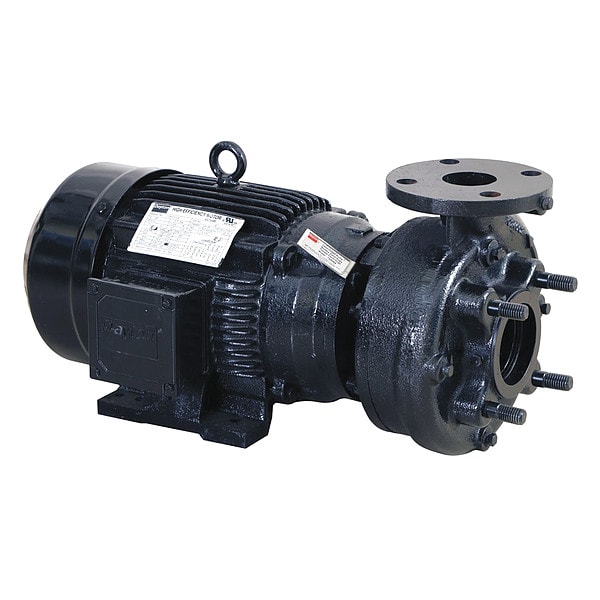

Centrifugal Pump, 3 Ph, 230/460VAC

  • Mfr # 55JJ41

  • Zoro # G3723527

product price:  $1,116.99
/ea
Additional $130.00 delivery surcharge applies per item.
See details

Key Features

HP - Pumps
3 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Cast Iron
Inlet Size - Pumps
2-1/2 in Flange
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
55JJ41
Zoro #
G3723527
UPC #
-
Country of Origin
India

Dimensions

Inlet Size - Pumps
2-1/2 in Flange
Outlet Size - Pumps
2 in Flange
Compatible Intake Pipe Size
2 1/2 in
Compatible Discharge Pipe Size
2 in
Intake Size
2 1/2 in
Overall Length
20.3 in
Impeller Diameter
119 mm
Solid Diameter (Maximum)
0.13 in
Overall Height
10.5 in
Motor Frame Size
182JM
Shaft Outer Diameter
7/8 in
Discharge Diameter
2 in
Inlet Diameter
2 1/2 in
Overall Width
11.5 in
Manufacturer Warranty Length
1 yr

Details

HP - Pumps
3 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Cast Iron
Max. Pressure - Pumps
36 psi
Max. Head
84 ft
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Amps
9.2/4.6
Phase
Three
Motor Enclosure
Totally Enclosed Fan Cooled
Best Efficiency Range GPM @ Head
97 to 131 gpm @ 72 to 62 ft
Frame
182JM
Item
Centrifugal Pump
Discharge Pump Type
Centrifugal Pump
Flange or Union Included
Yes
Flow Rate @ 70 ft of Head (Maximum)
109 gpm
Horsepower
3 hp
Flow Rate @ 50 ft of Head (Maximum)
159 gpm
Best Efficiency Flow
131 gpm
For Use With Potable Systems
No
Flow Rate @ 60 ft of Head (Maximum)
137 gpm
Pump Housing Material
Cast Iron
Intake Type
Flange
Nameplate Voltage
230/460V AC
Shut Off Pressure (Maximum)
36 psi
Flow Rate @ 30 ft of Head (Maximum)
197 gpm
Discharge Type
Flange
Maximum Feet of Head
84 ft
Flow Rate @ 40 ft of Head (Maximum)
179 gpm
Best Efficiency Head
72 ft
Discharge Position
Center
Shut Off Pressure - Maximum
36 psi
Specific Gravity (Maximum)
1
Media Temperature - Maximum
180 Degrees F
Shaft Material
Stainless Steel
Thermal Overload Protection
Yes
Inlet Standard
Flange
Flow Rate (Minimum)
109 gpm
Wetted Material
Bronze, Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
Inlet Position
Center
Mounting Orientation
Horizontal
Discharge Orientation
Top
Bearing Type
Ball
Full Load Current
7.4/3.7 A
Media Temperature - Minimum
40 Degrees F
Feet of Head (Minimum)
30 ft
Ambient Temperature - Maximum
40 Degrees C
Feet of Head (Maximum)
84 ft
Drive Coupling Type
No Coupling
Motor Speed - Maximum
3,450 RPM
Motor Design
Three-Phase
Includes
Manual
Pumping Application
Chemical Transfer, Decorative Water, Dewatering, Irrigation, Liquid Transfer
Impeller Material
Bronze
Frequency
60 Hz
Hazardous Location Class
Not Rated
Viscosity (Maximum)
100 SUS
Chemical Compatibility
Non-Flammable Liquids
Discharge Rotation Increments
0 Degrees
Volute Material
Cast Iron
Case Pressure - Maximum
100 psi
Flow Rate (Maximum)
197 gpm
Standards
UL Recognized Motor
Service Factor
1.25
Number of Stages
1
Duty Cycle
Continuous
Inlet Orientation
Side
Electrical Connection Type
Hardwired
Priming
Manual
Shaft Seal Material
Buna-N/Carbon/Ceramic
Shaft Seal Type
Mechanical
Discharge Standard
Flange

Description

Centrifugal Pump, Phase Three, Pump Housing Material Cast Iron, Horsepower 3 hp, Nameplate Voltage 208-230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 179 gpm, Flow Rate @ 60 ft of Head (Maximum) 137 gpm, Maximum Feet of Head 84 ft, Compatible Intake Pipe Size 2 1/2 in, Intake Type Flange, Compatible Discharge Pipe Size 2 in, Discharge Type Flange, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 30 ft of Head (Maximum) 197 gpm, Flow Rate @ 50 ft of Head (Maximum) 159 gpm
