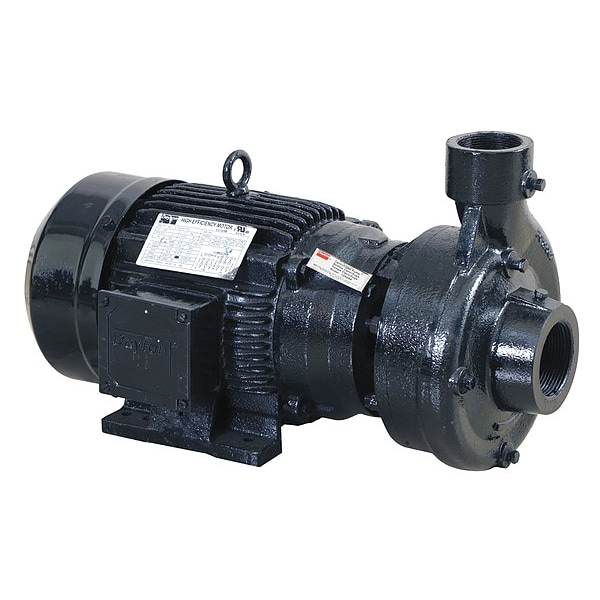

Centrifugal Pump, 3 Ph, 230/460VAC

  • Mfr # 55JJ43

  • Zoro # G3722854

product price:  $1,103.99
/ea
Additional $115.00 delivery surcharge applies per item.
See details

Key Features

HP - Pumps
3 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Cast Iron
Inlet Size - Pumps
2-1/2 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
55JJ43
Zoro #
G3722854
UPC #
-
Country of Origin
India

Dimensions

Inlet Size - Pumps
2-1/2 in NPT
Outlet Size - Pumps
2 in NPT
Compatible Discharge Pipe Size
2 in
Compatible Intake Pipe Size
2 1/2 in
Overall Length
20.8 in
Manufacturer Warranty Length
1 yr
Solid Diameter (Maximum)
0.13 in
Overall Width
11.5 in
Shaft Outer Diameter
7/8 in
Overall Height
12.2 in
Impeller Diameter
119 mm
Discharge Diameter
2 in
Inlet Diameter
2 1/2 in
Motor Frame Size
182JM

Details

HP - Pumps
3 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Cast Iron
Max. Pressure - Pumps
36 psi
Max. Head
84 ft
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Motor Enclosure
Totally Enclosed Fan Cooled
Amps
9.2/4.6
Best Efficiency Range GPM @ Head
97 to 131 gpm @ 72 to 62 ft
Discharge Pump Type
Centrifugal Pump
Frame
182JM
Phase
Three
Item
Centrifugal Pump
Flow Rate @ 70 ft of Head (Maximum)
109 gpm
Best Efficiency Flow
131 gpm
Flow Rate @ 40 ft of Head (Maximum)
179 gpm
Shut Off Pressure (Maximum)
36 psi
Flow Rate @ 50 ft of Head (Maximum)
159 gpm
Nameplate Voltage
230/460V AC
Discharge Type
NPT
For Use With Potable Systems
No
Maximum Feet of Head
84 ft
Best Efficiency Head
72 ft
Horsepower
3 hp
Flow Rate @ 60 ft of Head (Maximum)
137 gpm
Intake Type
NPT
Flow Rate @ 30 ft of Head (Maximum)
197 gpm
Pump Housing Material
Cast Iron
Wetted Material
Bronze, Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
Frequency
60 Hz
Inlet Position
Center
Bearing Type
Ball
Thermal Overload Protection
Yes
Duty Cycle
Continuous
Full Load Current
7.4/3.7 A
Impeller Material
Bronze
Feet of Head (Minimum)
30 ft
Drive Coupling Type
No Coupling
Media Temperature - Minimum
40 Degrees F
Motor Design
Three-Phase
Discharge Rotation Increments
0 Degrees
Number of Stages
1
Flow Rate (Minimum)
109 gpm
Priming
Manual
Inlet Orientation
Side
Specific Gravity (Maximum)
1
Mounting Orientation
Horizontal
Service Factor
1.25
Discharge Position
Center
Viscosity (Maximum)
100 SUS
Chemical Compatibility
Non-Flammable Liquids
Media Temperature - Maximum
180 Degrees F
Electrical Connection Type
Hardwired
Standards
UL Recognized Motor
Pumping Application
Chemical Transfer, Decorative Water, Dewatering, Irrigation, Liquid Transfer
Shut Off Pressure - Maximum
36 psi
Discharge Orientation
Top
Case Pressure - Maximum
100 psi
Hazardous Location Class
Not Rated
Feet of Head (Maximum)
84 ft
Ambient Temperature - Maximum
40 Degrees C
Motor Speed - Maximum
3,450 RPM
Shaft Seal Type
Mechanical
Flow Rate (Maximum)
197 gpm
Shaft Seal Material
Buna-N/Carbon/Ceramic
Includes
Manual
Shaft Material
Stainless Steel
Volute Material
Cast Iron

Description

Centrifugal Pump, Phase Three, Pump Housing Material Cast Iron, Horsepower 3 hp, Nameplate Voltage 208-240/480V AC, Flow Rate @ 40 ft of Head (Maximum) 179 gpm, Flow Rate @ 60 ft of Head (Maximum) 137 gpm, Maximum Feet of Head 84 ft, Compatible Intake Pipe Size 2 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 2 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 30 ft of Head (Maximum) 197 gpm, Flow Rate @ 50 ft of Head (Maximum) 159 gpm
