Shop DAYTON

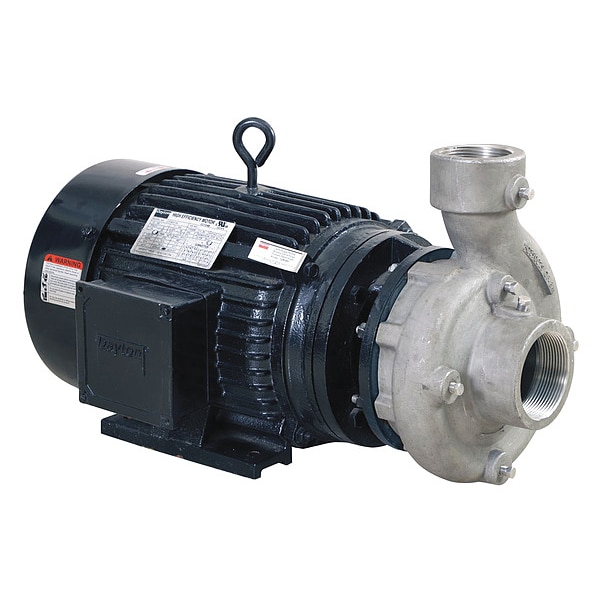

Centrifugal Pump, 3 Ph, 230/460VAC

  • Mfr # 55JJ44

  • Zoro # G3723396

product price:  $1,780.99
/ea
Additional $130.00 delivery surcharge applies per item.
See details

Key Features

HP - Pumps
3 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Stainless Steel
Inlet Size - Pumps
2-1/2 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
55JJ44
Zoro #
G3723396
UPC #
-
Country of Origin
India

Dimensions

Inlet Size - Pumps
2-1/2 in NPT
Outlet Size - Pumps
2 in NPT
Compatible Discharge Pipe Size
2 in
Compatible Intake Pipe Size
2 1/2 in
Overall Length
21.2 in
Manufacturer Warranty Length
1 yr
Impeller Diameter
4 23/32 in
Overall Height
12.1 in
Discharge Diameter
2 in
Shaft Outer Diameter
7/8 in
Motor Frame Size
182JM
Inlet Diameter
2 1/2 in
Overall Width
11.5 in
Solid Diameter (Maximum)
0.13 in
Wire Rope Length
21.2 in

Details

HP - Pumps
3 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Stainless Steel
Max. Pressure - Pumps
36 psi
Max. Head
84 ft
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Phase
Three
Frame
182JM
Discharge Pump Type
Centrifugal Pump
Motor Enclosure
Totally Enclosed Fan Cooled
Best Efficiency Range GPM @ Head
97 to 131 gpm @ 72 to 62 ft
Amps
9.2/4.6
Item
Centrifugal Pump
Maximum Feet of Head
84 ft
Pump Housing Material
Stainless Steel
Flow Rate @ 60 ft of Head (Maximum)
137 gpm
Flow Rate @ 40 ft of Head (Maximum)
179 gpm
Nameplate Voltage
230/460V AC
Flow Rate @ 30 ft of Head (Maximum)
197 gpm
Best Efficiency Head
72 ft
Horsepower
3 hp
Flow Rate @ 50 ft of Head (Maximum)
159 gpm
Intake Type
NPT
Shut Off Pressure (Maximum)
36 psi
For Use With Potable Systems
No
Flow Rate @ 70 ft of Head (Maximum)
109 gpm
Best Efficiency Flow
131 gpm
Discharge Type
NPT
Inlet Orientation
Side
Service Factor
1.25
Feet of Head (Minimum)
30 ft
Full Load Current
7.4/3.7 A
Standards
UL Recognized Motor
Shaft Seal Type
Mechanical
Number of Stages
1
Case Pressure - Maximum
100 psi
Shut Off Pressure - Maximum
36 psi
Discharge Orientation
Top
Shaft Seal Material
Carbon/Ceramic, FKM
Shaft Material
Stainless Steel
Wetted Material
Carbon, Ceramic, Stainless Steel, Viton
Discharge Rotation Increments
0 Degrees
Feet of Head (Maximum)
84 ft
Volute Material
316 Stainless Steel
Discharge Position
Center
Includes
Manual
Frequency
60 Hz
Duty Cycle
Continuous
Priming
Manual
Viscosity (Maximum)
100 SUS
Motor Design
Three-Phase
Bearing Type
Ball
Flow Rate (Maximum)
197 gpm
Media Temperature - Minimum
40 Degrees F
Drive Coupling Type
No Coupling
Pumping Application
Chemical Transfer, Decorative Water, Dewatering, Irrigation, Liquid Transfer
Impeller Material
Stainless Steel
Inlet Position
Center
Thermal Overload Protection
Yes
Media Temperature - Maximum
200 Degrees F
Chemical Compatibility
Non-Flammable Liquids
Electrical Connection Type
Hardwired
Motor Speed - Maximum
3,450 RPM
Hazardous Location Class
Not Rated
Mounting Orientation
Horizontal
Flow Rate (Minimum)
109 gpm
Ambient Temperature - Maximum
40 Degrees C
Specific Gravity (Maximum)
1

Description

Centrifugal Pump, Phase Three, Pump Housing Material Stainless Steel, Horsepower 3 hp, Nameplate Voltage 208-240/480V AC, Flow Rate @ 40 ft of Head (Maximum) 179 gpm, Flow Rate @ 60 ft of Head (Maximum) 137 gpm, Maximum Feet of Head 84 ft, Compatible Intake Pipe Size 2 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 2 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 30 ft of Head (Maximum) 197 gpm, Flow Rate @ 50 ft of Head (Maximum) 159 gpm
