Shop DAYTON

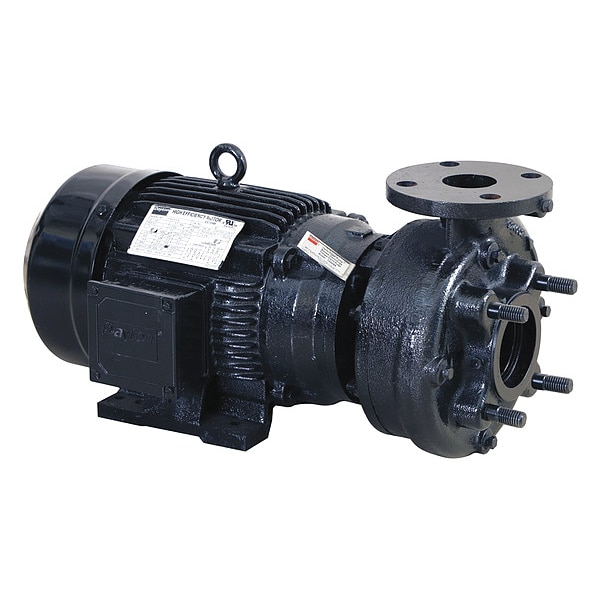

Centrifugal Pump, 3 Ph, 230/460VAC

  • Mfr # 55JJ45

  • Zoro # G3723204

product price:  $1,337.99
/ea
Additional $180.00 delivery surcharge applies per item.
See details

Key Features

HP - Pumps
5 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Cast Iron
Inlet Size - Pumps
2 in Flange
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
55JJ45
Zoro #
G3723204
UPC #
-
Country of Origin
India

Dimensions

Inlet Size - Pumps
2 in Flange
Outlet Size - Pumps
1-1/2 in Flange
Intake Size
2 in
Compatible Discharge Pipe Size
1 1/2 in
Compatible Intake Pipe Size
2 in
Discharge Diameter
1 1/2 in
Shaft Outer Diameter
7/8 in
Solid Diameter (Maximum)
0.13 in
Overall Width
11.5 in
Manufacturer Warranty Length
1 yr
Impeller Diameter
135 mm
Inlet Diameter
2 in
Motor Frame Size
184JM
Overall Length
20.3 in
Overall Height
10.5 in

Details

HP - Pumps
5 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Cast Iron
Max. Pressure - Pumps
47 psi
Max. Head
105 ft
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Item
Centrifugal Pump
Amps
15.4/7.7
Phase
Three
Best Efficiency Range GPM @ Head
123 to 188 gpm @ 90 to 68 ft
Discharge Pump Type
Centrifugal Pump
Motor Enclosure
Totally Enclosed Fan Cooled
Frame
184JM
Horsepower
5 hp
Best Efficiency Flow
188 gpm
Flow Rate @ 40 ft of Head (Maximum)
215 gpm
Flange or Union Included
Yes
Discharge Type
Flange
Flow Rate @ 80 ft of Head (Maximum)
145 gpm
Best Efficiency Head
90 ft
Maximum Feet of Head
100 ft
For Use With Potable Systems
No
Shut Off Pressure (Maximum)
47 psi
Nameplate Voltage
230/460V AC
Intake Type
Flange
Flow Rate @ 50 ft of Head (Maximum)
198 gpm
Flow Rate @ 100 ft of Head (Maximum)
55 gpm
Flow Rate @ 60 ft of Head (Maximum)
188 gpm
Flow Rate @ 70 ft of Head (Maximum)
162 gpm
Pump Housing Material
Cast Iron
Mounting Orientation
Horizontal
Specific Gravity (Maximum)
1
Number of Stages
1
Motor Design
Three-Phase
Frequency
60 Hz
Inlet Position
Center
Media Temperature - Maximum
180 Degrees F
Flow Rate (Maximum)
215 gpm
Thermal Overload Protection
Yes
Wetted Material
Bronze, Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
Bearing Type
Ball
Feet of Head (Maximum)
100 ft
Shaft Seal Material
Buna-N/Carbon/Ceramic
Duty Cycle
Continuous
Shaft Seal Type
Mechanical
Electrical Connection Type
Hardwired
Case Pressure - Maximum
100 psi
Inlet Orientation
Side
Includes
Manual
Flow Rate (Minimum)
55 gpm
Inlet Standard
Flange
Pumping Application
Chemical Transfer, Decorative Water, Dewatering, Irrigation, Liquid Transfer
Shut Off Pressure - Maximum
47 psi
Discharge Position
Center
Chemical Compatibility
Non-Flammable Liquids
Hazardous Location Class
Not Rated
Viscosity (Maximum)
100 SUS
Shaft Material
Stainless Steel
Impeller Material
Bronze
Media Temperature - Minimum
40 Degrees F
Priming
Manual
Motor Speed - Maximum
3,450 RPM
Volute Material
Cast Iron
Discharge Orientation
Top
Feet of Head (Minimum)
40 ft
Standards
UL Recognized Motor
Full Load Current
12.6/6.3 A
Ambient Temperature - Maximum
40 Degrees C
Drive Coupling Type
No Coupling
Service Factor
1.25
Discharge Rotation Increments
0 Degrees
Discharge Standard
Flange

Description

Centrifugal Pump, Phase Three, Pump Housing Material Cast Iron, Horsepower 5 hp, Nameplate Voltage 208-240/480V AC, Flow Rate @ 40 ft of Head (Maximum) 215 gpm, Flow Rate @ 60 ft of Head (Maximum) 188 gpm, Flow Rate @ 80 ft of Head (Maximum) 145 gpm, Maximum Feet of Head 100 ft, Compatible Intake Pipe Size 2 in, Intake Type Flange, Compatible Discharge Pipe Size 1 1/2 in, Discharge Type Flange, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 50 ft of Head (Maximum) 198 gpm
