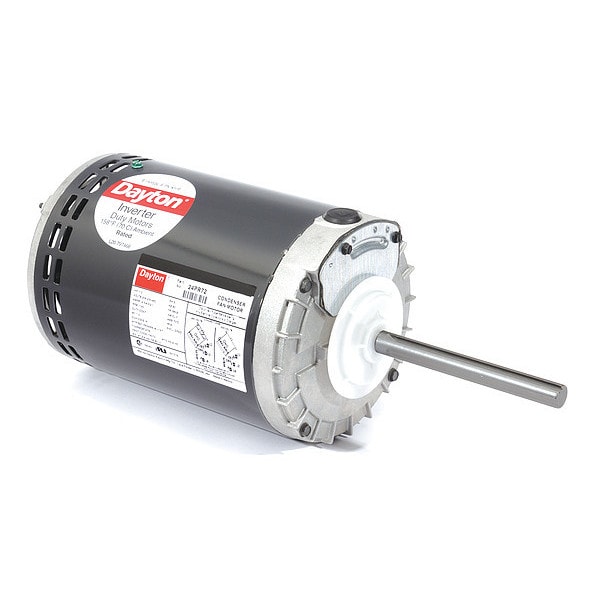

Condenser Fan Motor, 1 hp
Mfr # 24PR72
Zoro # G5358123
product price: $524.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
Phase
Three
HP
1
RPM Range
1,101-1,200
No. of Speeds
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
24PR72
Zoro #
G5358123
UPC #
190735194270
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Shaft Length
5 5/8 in
Length Less Shaft
9 3/4 in
Overall Length
15 3/4 in
Body Dia.
6 1/2 in
Lead Length
6 in
Description
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 4.3-4.3/2.1 A Full Load Amps, 56YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band, Inverter Rated Inverter Rated, Motor Mounting Position Vertical Shaft Up
