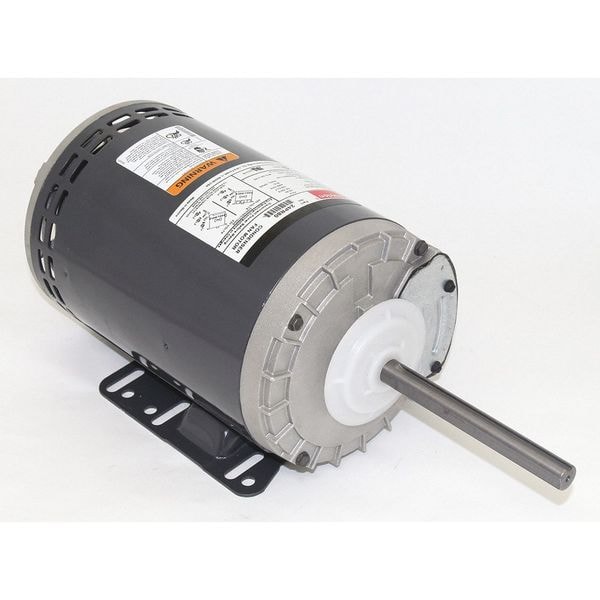

Condenser Fan Motor, 1 1/2 hp

  • Mfr # 24PR80
  • Zoro # G5358157
product price:
$
783.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 1/2
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
24PR80
Zoro #
G5358157
UPC #
190735194355
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
5 5/8 in
Overall Length
16 3/4 in
Lead Length
6 in
Length Less Shaft
10 1/4 in
Body Dia.
6 1/2 in
Wire Rope Length
16 3/4 in
Frame Size
56HZ
Body Diameter
6.5 in
Shaft Diameter
5/8 in
Length
16 3/4 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1 1/2
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56HZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Rigid Base
Motor Mounting Position
Vertical Shaft Up
Motor Thermal Protection
T-Stat
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Application
Commercial Air Conditioners
Standards
CSA 258525, UL E47479
Motor Bearings
Ball
Features
Inverter Duty Windings
Motor Shaft Design
Flat
Duty
Continuous
Ins. Class
F
Motor Service Factor
1
Hz
60 Hz
Nominal Efficiency
84 %
Full Load Amps
5.3-5.3/2.6 A
Inverter Rated
Yes
Duty Cycle
Continuous
Mounting
Rigid Base
Full Load Current @ 60 Hz
5.3-5.3/2.6 A
Inverter Rating
Inverter Rated
Product Type
Condenser Fan Motor
Ambient Temperature - Maximum
70 Degrees C
Sub Application
Condenser Fan
Mounting Position
Vertical Shaft Up
Frequency
60 Hz
Motor Enclosure Type
Open Air Over
Shaft Design
Flat
Bearing Type
Ball
Drive Type
Direct Drive
Insulation Class
F
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.3-5.3/2.6 A Full Load Amps, 56HZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base, Inverter Rated Inverter Rated, Inverter Rating Inverter Rated
