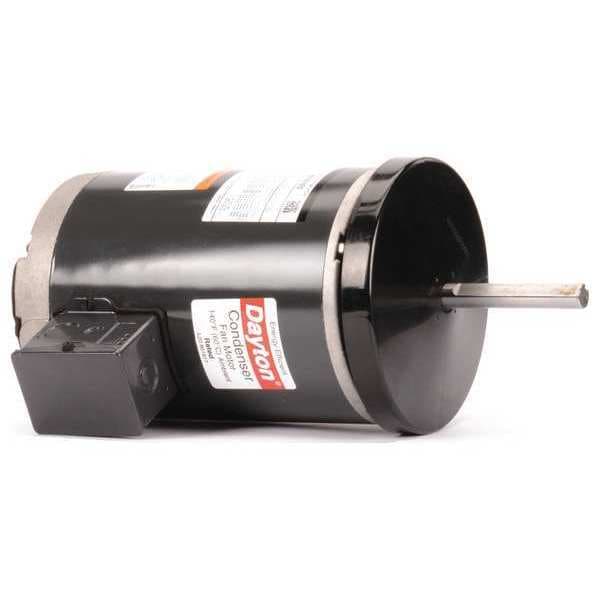

Condenser Fan Motor, 1 hp
Mfr # 31TR61
Zoro # G8571157
product price: $652.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
Phase
Three
HP
1
RPM Range
1,101-1,200
No. of Speeds
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
31TR61
Zoro #
G8571157
UPC #
190735255674
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Shaft Length
4 3/4 in
Lead Length
6 in
Stud Size
#10-32
Length Less Shaft
11 5/8 in
Body Dia.
6 1/2 in
Bolt Circle Dia.
5 7/8 in
Overall Length
14 9/16 in
Description
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 4.3-4.6/2.3 A Full Load Amps, 56Z Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band, Inverter Rated Inverter Rated, Motor Mounting Position Horizontal/Vertical Shaft Up
