Shop DAYTON

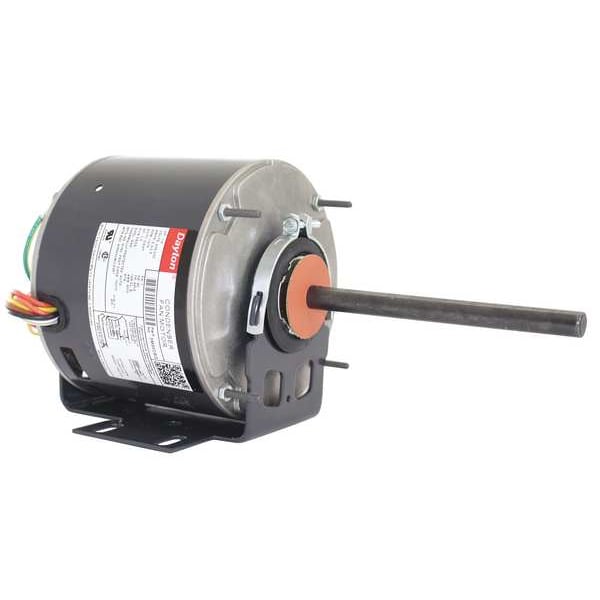

Condenser Fan Motor, 1/4 hp

  • Mfr # 3M990

  • Zoro # G2523044

product price:
$
229.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4
RPM Range
1,001-1,100
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3M990
Zoro #
G2523044
UPC #
190735292464
Country of Origin
Multiple
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
48YZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Cradle Base
Motor Application
HVAC/R
Motor Shaft Design
Double-Flat
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Service Factor
1
Item
Condenser Fan Motor
Max. Ambient Temp.
60 Degrees C
Motor Sub Application
Condenser Fan
Stud Quantity
4
Capacitor Required
Capacitor Included
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Thermal Protection
Auto
Standards
CSA Certified (258501), UL Recognized (E37403)
Full Load Amps
2.3-2.5 A
Nameplate RPM
1,075
Features
Reversing Plug, Totally Enclosed Shaft Endshield and Shell
Hz
60 Hz
Motor Bearings
Ball
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Nominal Efficiency
58.8 %
Duty
Continuous
Ins. Class
B
Duty Cycle
Continuous
Full Load Current @ 60 Hz
2.3-2.5 A
Shaft Design
Double Flat
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Open Air Over
Product Type
Condenser Fan Motor
Insulation Class
B
Frequency
60 Hz
Ambient Temperature - Maximum
60 Degrees C
Drive Type
Direct Drive
Bearing Type
Ball
Sub Application
Condenser Fan
Mounting Position
Horizontal/Vertical Shaft Up
Number of Speeds
1

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.3-2.5 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal/Vertical Shaft Up, Shaft Length 6 in
