Shop CENTURY

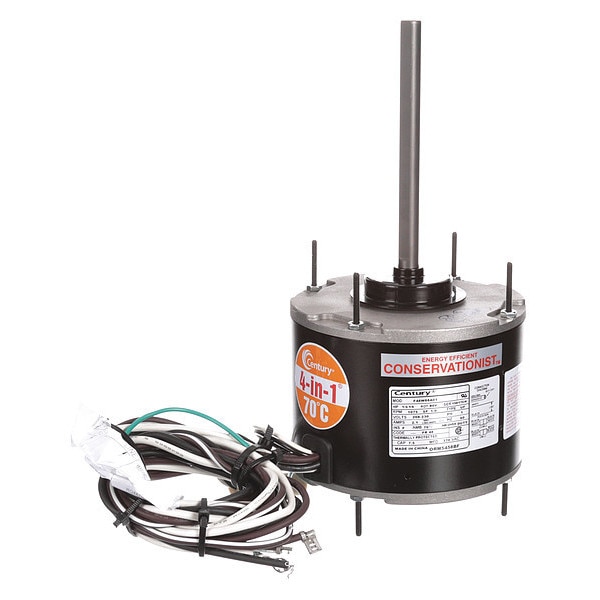

Condenser Fan Motor, 1/3 hp

  • Mfr # ORM5458BF

  • Zoro # G0836193

product price:
$
203.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3 to 1/6
RPM Range
1,001-1,100
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ORM5458BF
Zoro #
G0836193
UPC #
-
Country of Origin
India

Dimensions

Overall Length
11 1/2 in
Lead Length
48 in
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Length Less Shaft
5 in
Shaft Length
6 1/2 in
Stud Size
#8-32
Bolt Circle Dia.
5 1/8 in
Mounting Stud Length
1 1/8 in
Shaft Diameter
1/2 in
Mounting Stud Thread Size
#8-32
Body Diameter
5.6 in
Frame Size
48
Bolt Circle Diameter
5 1/8 in
Wire Rope Length
11 1/2 in
Length
11 1/2 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3 to 1/6
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Features
All Angle Mounting, Energy Efficient PSC Design, Removable Drain Plugs Each End, Rheem Mounting Holes
Motor Sub Application
Condenser Fan
Standards
CSA Certified, UL Recognized
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Mounting Stud Pattern
2 1/4 in x 2 1/4 in
Motor Bearings
Ball
Max. Ambient Temp.
70 Degrees C
Capacitor Required
Capacitor Not Included
Full Load Amps
2.1 A
Nameplate RPM
1,075
Stud Quantity
4
Hz
60 Hz
Motor Application
HVAC/R
Motor Mounting Position
All Angle
Motor Thermal Protection
Auto
Ins. Class
F
Item
Condenser Fan Motor
Duty
Continuous
Motor Shaft Design
Double-Flat
Motor Service Factor
1
Replacement For
Mfr. No. 3458HS, EM3458F
Output Watts
250 W
Usable @ 208V
Usable at 208V
Includes
Belly Band
Usable @ 200V
Not Usable at 200V
Removable Base
No
Weight
12 lb
Motor Frame Material
Steel
Motor Flange Type
Non-Ventilated
Mounting
Stud
Shaft Design
Double Flat
Motor Enclosure Type
Totally Enclosed Air-Over
Number of Speeds
1
Ambient Temperature - Maximum
70 Degrees C
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1
Sub Application
Condenser Fan
Flange Type
Non-Ventilated
Application
Condenser Fan
Drive Type
Direct Drive
Mounting Position
All Angle
Frame Material
Steel
Frequency
60 Hz
Wattage
250 W
Full Load Current @ 60 Hz
2.1 A
Product Type
Condenser Fan Motor
Bearing Type
Ball

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.1 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Replacement For Mfr. No. 3458HS, EM3458F, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
