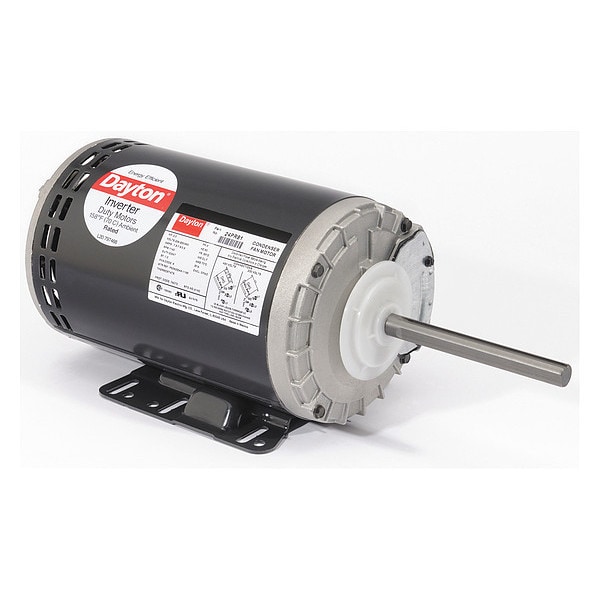

Condenser Fan Motor, 2 hp

  • Mfr # 24PR81
  • Zoro # G5358166
product price:
$
863.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
2
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
24PR81
Zoro #
G5358166
UPC #
190735194362
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
5 5/8 in
Length Less Shaft
10 3/4 in
Body Dia.
5 5/8 in
Lead Length
6 in
Overall Length
17 1/4 in
Wire Rope Length
17 1/4 in
Shaft Diameter
5/8 in
Frame Size
56YZ
Body Diameter
5.6 in
Length
17 1/4 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
2
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56YZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Rigid Base
Motor Mounting Position
Vertical Shaft Up
Motor Thermal Protection
T-Stat
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Standards
CSA 258525, UL E47479
Nominal Efficiency
86 %
Features
Inverter Duty Windings
Full Load Amps
7.8-7.8/3.9 A
Hz
60 Hz
Motor Shaft Design
Flat
Application
Commercial Air Conditioners
Duty
Continuous
Motor Bearings
Ball
Ins. Class
F
Motor Service Factor
1
Inverter Rated
Yes
Duty Cycle
Continuous
Mounting
Rigid Base
Full Load Current @ 60 Hz
7.8-7.8/3.9 A
Number of Speeds
1
Ambient Temperature - Maximum
70 Degrees C
Shaft Design
Flat
Drive Type
Direct Drive
Sub Application
Condenser Fan
Frequency
60 Hz
Insulation Class
F
Product Type
Condenser Fan Motor
Inverter Rating
Inverter Rated
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball
Motor Enclosure Type
Open Air Over
Mounting Position
Vertical Shaft Up

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 7.8-7.8/3.9 A Full Load Amps, 56YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base, Inverter Rated Inverter Rated, Inverter Rating Inverter Rated
