Shop LEESON

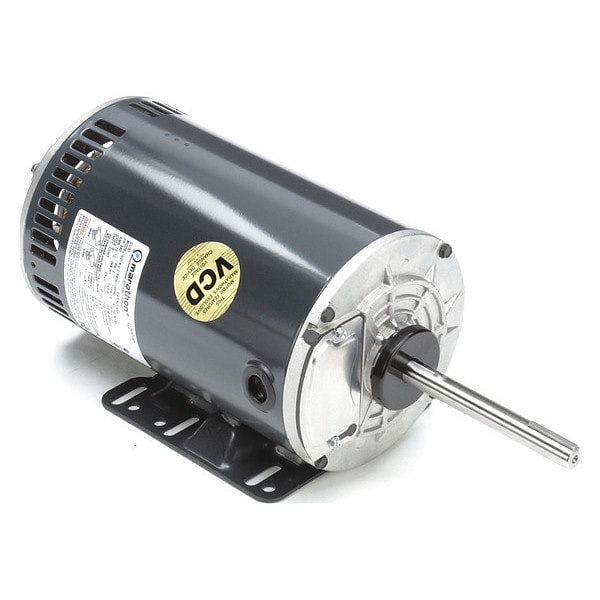

Condenser Fan Motor, 1 1/2 hp

  • Mfr # 056T8O15504
  • Zoro # G5584372
product price:
$
701.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 1/2
RPM Range
0-1,000
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
056T8O15504
Zoro #
G5584372
UPC #
-
Country of Origin
Multiple
Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1 1/2
RPM Range
0-1,000
No. of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56HZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Rigid Base
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
850
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Nominal Efficiency
73.5 %
Hz
50/60 Hz
Motor Shaft Design
Keyed with Single Flat
Motor Bearings
Ball
Full Load Amps
7.0-7.0/3.5 A
Motor Service Factor
1
Application
Condenser Fan
Ins. Class
H
Duty
Continuous
Standards
CSA Certified (LR2025), UL Recognized
Features
Combination Base With 12 Mounting Holes, Shaft Slinger, Threaded Lead Exit
Output Watts
1100 W
Service Factor @ 50Hz
1
Usable @ 208V
Usable at 208V
Conduit Box Position
F1
Motor Frame Material
Steel
HP @ 50Hz
1-1/2
Full Load Amps @ 50Hz
7.0-7.0/3.5 A
Conduit Box Location
Exterior
Duty Cycle
Continuous
RPM @ 50Hz
850
Usable @ 200V
Not Usable at 200V
Voltage @ 50Hz
208-230/460V AC
Weight
47 lb
Mounting
Rigid Base
Nameplate Horsepower @ 50 Hz
1 1/2 hp
Frequency
60/50 Hz
Product Type
Condenser Fan Motor
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball
Nameplate Service Factor @ 50 Hz
1
Shaft Design
Keyed
Full Load Current @ 50 Hz
7.0-7.0/3.5 A
Nameplate RPM @ 50 Hz
850
Full Load Current @ 60 Hz
7.0-7.0/3.5 A
Mounting Position
Horizontal/Vertical Shaft Up
Nameplate Voltage @ 50 Hz
208-230/460V AC
Sub Application
Condenser Fan
Capacitor Required
Capacitor Not Required
Insulation Class
H
Number of Speeds
1
Motor Enclosure Type
Open Air Over
Frame Material
Steel
Wattage
1100 W
Drive Type
Direct Drive
Ambient Temperature - Maximum
70 Degrees C

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 7.0-7.0/3.5 A Full Load Amps, 56HZ Frame, Output Watts 1100 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class H, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base
