Dayton

DC Gearmotor, 19 rpm, 90V, TENV

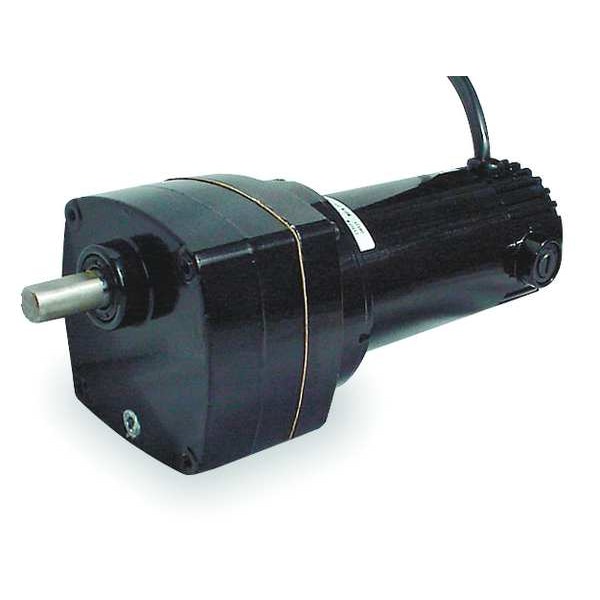

Dayton DC Gearmotor, 19 rpm, 90V, TENV 2H567
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$530.14
  • Gearmotor Type: DC Gearmotor
  • Gearmotor Voltage: 90V DC
  • Max. Torque: 150.0 in-lb
See full product details
This item ships free.
Total: $530.14

Dayton #2H567 Specifications

  • Gearmotor Type: DC Gearmotor
  • Gearmotor Voltage: 90V DC
  • Max. Torque: 150.0 in-lb
  • Gearmotor Shaft Type: Single
  • Gearmotor Shaft Orientation: Parallel
  • Rear Shaft Encoder/Pulse Generator Mounting: Yes
  • Nameplate RPM: 19 RPM
  • Gearmotor Enclosure: Totally Enclosed Nonventilated
  • Gearmotor Mounting Position: All Angle
  • Tachometer Feedback: Yes
  • Gearmotor Rotation: CW/CCW
  • Housing Material: Die Cast Aluminum
  • Gear Type: Helical and Spur
  • Gear Case: Die Cast Aluminum
  • RPM Range: 16 to 30
  • Standards: C-UL Recognized, UL Recognized
  • Gear Material: Hardened Steel
  • Gear Ratio: 96:1
  • Dimension D: 2.58 in
  • Enclosure: TENV
  • Replacement Brushes: 6YHY3
  • Dimension L: 7 7/20"
  • Dimension X: 6.47"
  • Length Less Shaft: 7 3/8 in
  • Overhung Load: 150 lb
  • Item: DC Gearmotor
  • Thermal Protection: None
  • Brushes: Externally Replaceable
  • Overall Length: 8 3/8 in
  • Input HP: 1/20
  • Max. Ambient Temp.: 40 Degrees C
  • Shaft Dia. (Dimension U): 1/2"
  • Reversible Shaft Output: No
  • Shaft Orientation: Parallel
  • Full Load Amps: 0.58 A
  • Mounting: All Position
  • Seals: Spring Loaded Lip Type on Input and Output Shaft
  • Bearings: Ball on Motor, Needle Throughout
  • Rotation: Reversible
  • Lubrication: Permanent Heavy Fluid Gear Oil
  • Motor Type: Permanent Magnet DC
  • Voltage: 90VDC
  • Shaft Length (Dimension V): 1"
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

DC Gearmotor, Gearmotor Voltage 90V DC, Max. Torque 150.0 in-lb, Single Gearmotor Shaft Type, Nameplate RPM 19 RPM, Totally Enclosed Nonventilated Gearmotor Enclosure, All Angle Gearmotor Mounting Position, Overhung Load 150 lb, Input HP 1/20, Gear Ratio 96:1, Full Load Amps 0.58 A, None Thermal Protection, Motor Type Permanent Magnet DC, Replacement Brushes 6YHY3
