Dayton

DC Speed Control, 90VDC, 4A, IP30

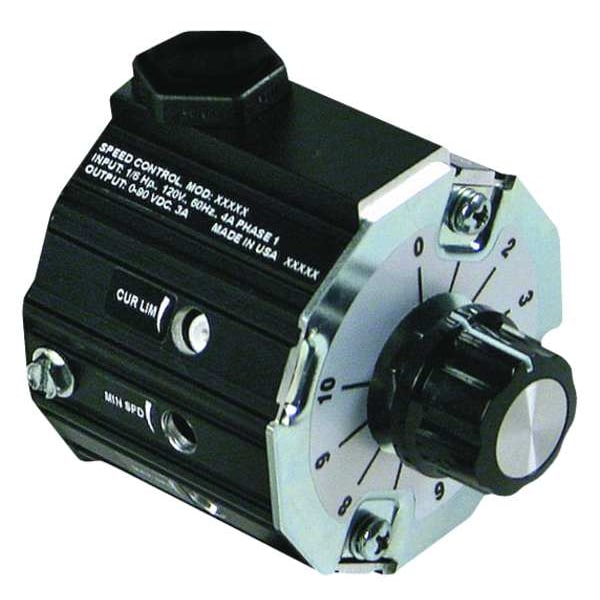

Dayton DC Speed Control, 90VDC, 4A, IP30 2PUX3
Tap to zoom
Hover or click to zoom
$322.40
  • Item: DC Speed Control
  • Enclosure: IP30
  • Max. Amps: 3 A
See full product details
This item ships free.

Total: $322.40

Dayton #2PUX3 Specifications

  • Item: DC Speed Control
  • Enclosure: IP30
  • Max. Amps: 3 A
  • Voltage Output: 0 to 90V DC
  • Speed Range: 15:1
  • Rotation: Single Direction
  • External Switches: None
  • AC Input Voltage: 120V AC
  • DC Speed Control: SCR
  • IR Compensation: None
  • Height: 3.6 in
  • Follower Circuit: No
  • Operating Temp.: 0 Degrees to 40 Degrees C
  • Depth: 3.19 in
  • Includes: Current Limit, Max Speed And Min Speed Setting Pots
  • HP @ Lower Volts: 1/35 to 1/6
  • Accepts Tach Feedback: Yes
  • For Use With: 90V PMDC Motors
  • Width: 2.61 in
  • Power On Light: No
  • Mount Type: Motor End Bell
  • Current/Torque Limit: Adjustable
  • Speed Regulation: 10 to 30%
  • Overall Depth: 3.19 in
  • Overall Width: 2.61 in
  • Overall Height: 3.6 in
  • Series: Series 113
  • Enclosure Type: Enclosed
  • Maximum Current: 3 A
  • Operating Temperature: 0 Degrees to 40 Degrees C
  • Enclosure Rating: IP30
  • Lower Voltage Motor Output Power: 0 V DC
  • Higher Voltage Motor Output Power: 90 V DC
  • Country of Origin (subject to change): United States

Description

DC Speed Control, Enclosure IP30, Max. Amps 3 A, Voltage Output 0 to 90V DC, Speed Range 15:1, Rotation Single Direction, External Switches None, AC Input Voltage 120V AC, DC Speed Control SCR, HP @ Lower Volts 1/35 to 1/6, Current/Torque Limit Adjustable, Speed Regulation 10 to 30 Percent, Accepts Tach Feedback Yes, Power On Light No, IR Compensation None, Follower Circuit No, Mount Type Motor Endbell, Height 3.6 in, Depth 3.19 in, Width 2.61 in, Operating Temp. 0 Degrees to 40 Degrees C
