Shop DAYTON

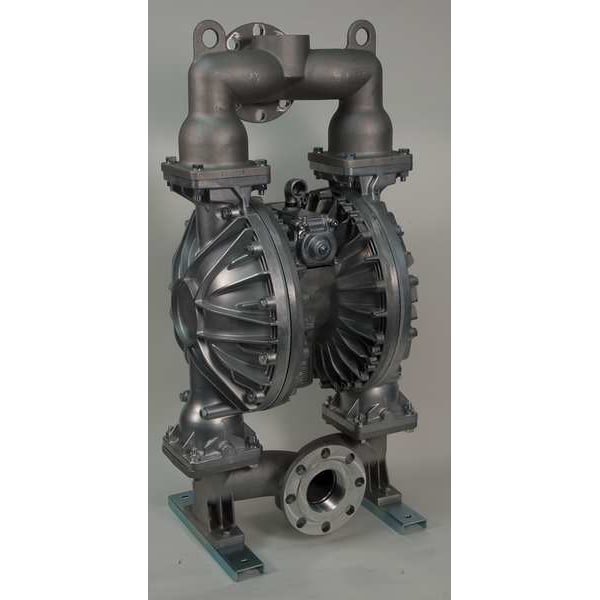

Double Diaphragm Pump, Aluminum, Air Operated, Santoprene, 215 GPM

  • Mfr # 22A596

  • Zoro # G2236495

product price:  $3,014.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene
Valve Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
22A596
Zoro #
G2236495
UPC #
190735168431
Country of Origin
Japan

Dimensions

Air Intake Connection Size
3/4 in
Manufacturers Warranty Length
1 yr
Overall Width
2.4 in
Overall Length
16.5 in
Overall Height
4.8 in
Media Discharge Connection Size
3 in
Solid Diameter (Maximum)
0.41 in
Media Intake Connection Size
3 in
Wire Rope Length
16.5 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene
Valve Type
Ball
Air Consumption (Maximum)
185 scfm
Air Intake Connection Type
NPT Threaded Flange
Check Seat Material
Santoprene
Diaphragm Material
Santoprene
Media Temperature (Maximum)
212 Degrees F
Media Temperature (Minimum)
-10 Degrees F
Operating Pressure (Maximum)
100 psi
Self-Priming Wet
28 ft
Includes
Ball Valve
Pump Operation Type
Air
Self-Priming Dry
19 ft
For Use With
General Indsutrial Use Including Waste Oils, Water Based Chemicals and Fluids with A Neutral Ph. Handles Suspended Solids and Shear Sensative Fluids
Inlet/Outlet
3 in
Priming
Self-Priming
Air Intake Pressure (Maximum)
100 psi
Flow Rate (Maximum)
215 gpm
Media Discharge Connection Type
NPT Threaded Flange
Wetted Housing Material
Aluminum
Flow Rate @ 100 psi
220 gpm
Mounting Hardware Material
Steel
Flow Rate @ 60 psi
200 gpm
Media Intake Connection Type
NPT Threaded Flange
Media Discharge Location
Top
Viscosity (Maximum)
50,000 cps
Duty Cycle
Continuous
Feet of Head (Maximum)
231 ft
Manifold Connection Type
NPT
Media Intake Location
Bottom
For Use With Potable Systems
No
Flow Rate @ 30 psi
152 gpm
Flow Rate @ 70 psi
210 gpm
Diaphragm Reinforcement
Not Reinforced
Center Section Material
Aluminum
Diaphragm Base Material
Santoprene
Includes Solenoid
No Solenoid Included
Chemical Compatibility
Antifreeze, Calcium Carbonate, Detergents, Diesel, Motor Oil, Water
Includes Clean In Place Technology
No Clean In Place Included
Wetted Body Material
Aluminum
Material Conductivity
Conductive
Displacement Per Stroke
1.13 gal
Media Intake Port Configuration
Center Horizontal
Manifold Connection Standard
NPT
Fluid Chamber Assembly Type
Bolted
Manifold Port Connection Type
Single Port
Media Discharge Port Configuration
Center Horizontal

Description

Double Diaphragm Pump, Air Consumption (Maximum) 185 scfm, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT Threaded Flange, Check Seat Material Santoprene, Diaphragm Material Santoprene, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 215 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3 in, Media Discharge Connection Type NPT Threaded Flange, Media Discharge Location Top, Media Intake Connection Size 3 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
