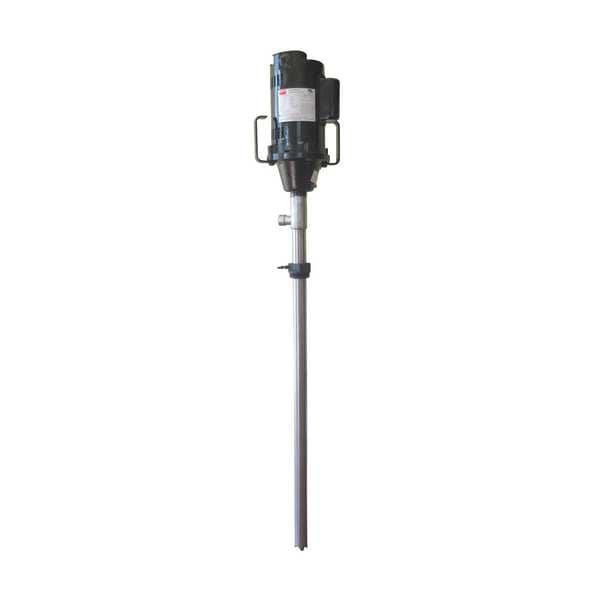

Dayton Electric, Drum Pump 5UWF7 - main

Electric, Drum Pump

  • Mfr # 5UWF7

  • Zoro # G3531561

product price: $569.99
/ea
Free Shipping & Returns

Key Features

For Use With
Acids, Alkalies, Chlorines, Photographic Chemicals
Max. Viscosity
1,000 cps
Motor Type
Continuous Duty
Power Source
Electric
Outlet Size
3/4"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5UWF7
Zoro #
G3531561
UPC #
190735352526
Country of Origin
India

Dimensions

Outlet Size
3/4"
Discharge Tube Outlet OD Size
1"
Suction Tube Length
35 1/2 in
Height
53-5/16"
Inlet Size
1-1/2"
Overall Length
6 3/4 in
Discharge Tube Length
1-1/2"
Discharge Tube Outlet ID Size
3/4"
Manufacturers Warranty Length
1 yr.
Height Above Container
17 3/8 in
For Container Size
55 gal

Details

For Use With
Acids, Alkalies, Chlorines, Photographic Chemicals
Item
Electric Operated Drum Pump
Max. Viscosity
1,000 cps
Motor Type
Continuous Duty
Power Source
Electric
Wetted Materials
PTFE, Stainless Steel, Viton
Voltage
115/230VAC
Motor Enclosure
ODP
Metered
No
Max. Flow GPM
9.5 gpm
Motor RPM
3,450 RPM
Standards
Motor is UL approved
Adapter Material
Polypropylene
Max. GPM for Water
9.5
Phase
1
Hz
60
Self-Priming
Yes
Discharge Tubing Material
Stainless Steel
HP
1/3
Housing Material
Stainless steel
Max. Pressure
9.5 psi
Pump Body Material
Stainless Steel
Application
To Transfer Clean, Non Abrasive, Non Flammable and Non Hazardous Fluids
Type
Motor and Tube
Max. Head
10 ft.
Max. Liquid Temp.
140 Degrees F
Max. Temp.
140 Degrees F
RPM
3450
GPM
9.5
Seal Material
PTFE
Adapter Type
Threaded
Agency Compliance
Motor is UL approved
Discharge Tube Outlet OD
1 in
Includes Suction Tube
Yes
Includes Nozzle
No
Includes Discharge Hose
Yes
Housing Material - Pumps
Stainless Steel
Max. Flow Rate
9.5 gpm
Max. Fluid Temp.
140 Degrees F
Discharge Tube Outlet ID
3/4 in
For Container Type
Drum
Motor HP
1/3 hp
Max. Head - Pumps
10 ft
For Media Type
General Purpose
Diesel Exhaust Fluid Compatible
No
Number of Phases
1
Full Load Amps
8.9 A
Frequency (Hz)
60 Hz
Includes Bung Adapter
No
Rated Voltage
115V AC
Max. Outlet Pressure
9.5 psi

Description

Electric Operated Drum Pump, Max. Outlet Pressure 9.5 psi, For Use With Acids, Alkalies, Chlorines, Photographic Chemicals, Rated Voltage 115V AC, Suction Tube Length 35 1/2 in, Includes Bung Adapter No, Frequency (Hz) 60 Hz, Power Source Electric, Includes Discharge Hose Yes, Self-Priming Yes, Includes Nozzle No
