  9. Engine Drive Pump Kit, 11 HP, Honda Engine

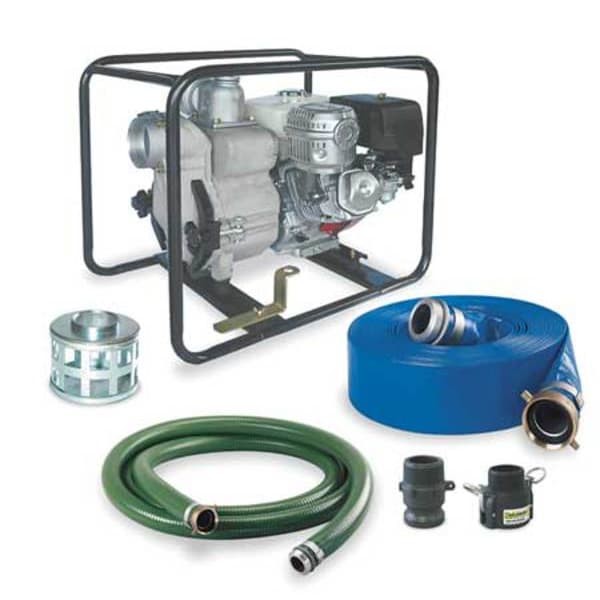

Dayton Engine Drive Pump Kit, 11 HP, Honda Engine 7AJ19 - main

Engine Drive Pump Kit, 11 HP, Honda Engine

  • Mfr # 7AJ19

  • Zoro # G1709976

product price: $4,122.99
/ea
Free Shipping & Returns

Key Features

Solids Handling Capacity
1-1/8"
Impeller Material
Cast Iron
Material of Construction
Aluminum
Length
28-3/4"
Height
24"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7AJ19
Zoro #
G1709976
UPC #
00194484310158
Country of Origin
Multiple

Dimensions

Length
28-3/4"
Height
24"
Width
19"
Engine Size
337 cc
Overall Width
19 in
Inlet Dia.
4 in
Overall Length
28 3/4 in
Overall Height
24 in
Max. Diameter Solids
1 1/8 in
Discharge Dia.
4 in
Solids Diameter - Maximum
1 1/8 in
Inlet Diameter
4 in
Discharge Diameter
4 in

Details

Solids Handling Capacity
1-1/8"
Impeller Material
Cast Iron
Material of Construction
Aluminum
Tank Capacity
1.72 gal
Check Valve
Buna N
Max. Pressure
35 psi
Inlet
4 in
Casing Adapter
Aluminum
Temp. Range
35 Degrees to 105 Degrees F
Max. Head
80 ft
Item
Engine Driven Pump
Engine Brand
Honda
Max. Suction Lift
25 ft
Roll Bar Frame
Steel
Sensor Type
Low Oil
Engine RPM
3600
GPM of Water @ 20 Ft. of Head
410
Engine/Motor Type
Gas
Includes
4 in x 50 ft Blue Discharge Hose, 4 in Female Coupler, 4 in Male Cam Adapter, 4 in Strainer, 4 in x 20 ft Green Suction Hose
Mechanical Seal
Silicon Carbide, Buna N
GPM of Water @ 40 Ft. of Head
290
GPM of Water @ 70 Ft. of Head
75
GPM of Water @ 50 Ft. of Head
220
GPM of Water @ 10 Ft. of Head
430
Number of Impellers
1
Application
Trash
GPM of Water @ 60 Ft. of Head
150
Outlet
4" Cam and Groove
HP
9 1/2 hp
Seal Material
Buna-N/Silicon Carbide
Impeller Type
Semi-Open
Volute/Wear Plate
Cast Iron/Stainless Steel
Ignition Type
Electronic
GPM of Water @ 30 Ft. of Head
360
Agency Compliance
EPA and CARB Certified Engine
Impeller Design
Semi-Open
Pump Mechanism
Centrifugal
Maximum Discharge Pressure
35 psi
Discharge
4 in
RPM
3,600 RPM
Power Source
Gas Engine
Body Material
Aluminum
Frame Material
Steel
Flow Rate @ 20 Ft. of Head
410 gpm
Flow Rate @ 10 Ft. of Head
430 gpm
Frame Design
Roll Cage
Flow Rate @ 40 Ft. of Head
290 gpm
Flow Rate @ 60 Ft. of Head
150 gpm
Volute Material
Cast Iron/Stainless Steel
Frame Design - Pumps
Full Tubular Frame
Standards
CARB Certified Engine, EPA Certified Engine
Flow Rate @ 20 ft of Head
410 gpm
Discharge Pressure - Maximum
35 psi
Rotation Speed - Maximum
3,600 RPM
Feet of Head - Maximum
80 ft
Flow Rate @ 10 ft of Head
430 gpm
Horsepower
9 1/2 hp
Suction Lift - Maximum
25 ft

Description

Engine Driven Pump, Engine Size 337 cc, HP 9 1/2 hp, Tank Capacity 1.72 gal, Ignition Type Electronic, Pump Mechanism Centrifugal, Body Material Aluminum, Volute Material Cast Iron/Stainless Steel, Seal Material Buna-N/Silicon Carbide, Frame Material Steel, Flow Rate @ 10 Ft. of Head 430 gpm, Flow Rate @ 20 Ft. of Head 410 gpm, Flow Rate @ 40 Ft. of Head 290 gpm, Flow Rate @ 60 Ft. of Head 150 gpm, Max. Head 80 ft, Max. Suction Lift 25 ft, Frame Design - Pumps Full Tubular Frame
