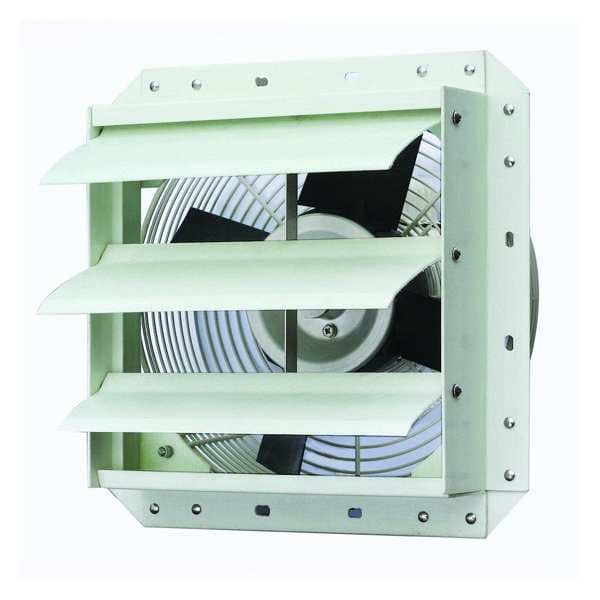

Exhaust Fan, 12 In, 115 V, 900 CFM

DAYTON |Zoro #: G1318992|Mfr #: 1BLH8

$460.24 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1318992 Mfr #: 1BLH8
Propeller Material: Fiberglass Reinforced PolypropyleneHz: 60
Bearing Type: Sealed BallExhaust/Supply Fan Item: Exhaust Fan
Guard Material: SteelFrame Material: Fiberglass
Phase: 1Thermal Protection: Auto
Drive Package Included: NoFan Voltage: 115
Wire Guard Finish: Epoxy CoatedMotor Insulation: Class B
Motor Type: Permanent Split CapacitorMax. Ambient Temp. (F): 104
Agency Compliance: UL Listed for US and CanadaMotor Enclosure: Totally Enclosed Air-Over
Item: Exhaust FanType: Corrosion Resistant Shutter Mount
Speed Control: NoDimension D (In.): 3-1/8
Dimension C (In.): 6-1/4Dimension B (In.): 8-29/32
Dimension A (In.): 15CFM @ 0.000-In. SP: 900
CFM @ 0.125-In. SP: 712CFM @ 0.250-In. SP: 440
CFM @ 0.375-In. SP: 152Sones @ 0.000-In. SP @ 5 Ft.: 6.8
Full Load Amps: 1.3Motor RPM: 1625
Motor Type: Permanent Split CapacitorMax. Depth (In.): 15-5/32
Sq. Opening Required (In.): 13Number of Blades: 4
Height (In.): 15Dimension E (In.): 12
Exhaust/Supply Fan Motor HP: 1/8Blade Dia.: 12"
Width (In.): 15Country of Origin (subject to change): United States

Product Description

Exhaust Fan, Corrosion Resistant Shutter Mount, Blade Dia. 12 In., Fan Voltage 115, Drive Package Included No, Max. Ambient Temp. (F) 104, CFM @ 0.000-In. SP 900, 60 Hz, 1 Phase, Full Load Amps 1.3, Exhaust/Supply Fan Motor HP 1/8, Motor RPM 1625, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Air-Over, Height (In.) 15, Width (In.) 15, Max. Depth (In.) 15-5/32, Sq. Opening Required (In.) 13, Frame Material Fiberglass, Guard Material Steel, Wire Guard Finish Epoxy Coated
