  9. Exhaust Fan, 8", 466 cfm, 115V, 1 Phase

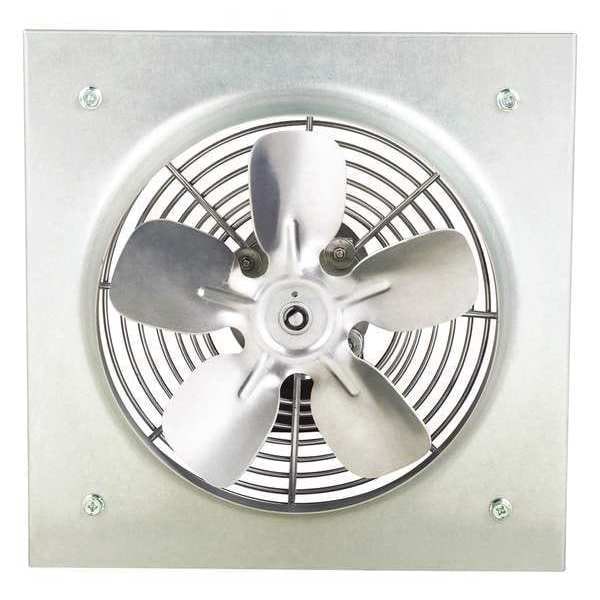

Dayton Exhaust Fan, 8", 466 cfm, 115V, 1 Phase 10D952 - main

Exhaust Fan, 8", 466 cfm, 115V, 1 Phase

  • Mfr # 10D952

  • Zoro # G4326664

product price: $123.99
/ea
Free Shipping & Returns

Key Features

Exhaust/Supply Fan Item
Exhaust Fan
Blade Dia.
8 in
Number of Speeds
1
Fan Voltage
115V AC
CFM @ 0.000-In. SP
466 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10D952
Zoro #
G4326664
UPC #
190735108772
Country of Origin
China

Dimensions

Blade Dia.
8 in
Venturi Depth (In.)
1 3/4 in
Dimension C (In.)
2 3/8 in
Height (In.)
12 in
Dimension B (In.)
5 in
Max. Depth (In.)
7 3/8 in
Width (In.)
12 in
Flange Width (In.)
1 in
Inside Dia. (In.)
8 1/4 in
Venturi Clearance Dia. (In.)
8 3/8 in
Dimension D (In.)
8 1/4 in
Outside Dia. (In.)
12 in
Dimension A (In.)
12 in
Overall Height
12 in
Overall Width
12 in
Venturi Diameter
8 1/2 in
Overall Depth
7 3/8 in
Flange Width
1 in
Duct Diameter
8 1/4 in
For Cut-Out Diameter
8 1/4 in
Venturi Depth
2 in
Blade Diameter
8 in
Overall Diameter
12 in

Details

Exhaust/Supply Fan Item
Exhaust Fan
Number of Speeds
1
Fan Voltage
115V AC
CFM @ 0.000-In. SP
466 cfm
Exhaust/Supply Fan Motor HP
1/30 hp
Item
Exhaust Fan
CFM @ 0.250-In. SP
170 cfm
Number of Blades
5
Type
Medium Duty Direct Drive
Voltage
115
Frame Finish
Galvanized
Agency Compliance
UL and cUL Listed, AMCA
Watts
25 W
Motor Insulation
Class B
Hz
60
Frame Material
Steel
Wire Guard Finish
Zinc Plated
CFM @ 0.125-In. SP
329 cfm
Speed Control
48C172
Bearing Type
Ball
Propeller Material
Aluminum
Mounting Position
Vertical
Motor RPM
1,775 RPM
For Use With
General Ventilation Applications
Drive Package Included
No
Sones @ 0.000-In. SP @ 5 Ft.
6.8
Full Load Amps
0.6
Phase
1
Motor Enclosure
Totally Enclosed Air Over
CFM @ 0.375-In. SP
117 cfm
Guard Material
Steel
Sones @ 0.125-In. SP @ 5 Ft.
7.6
Max. Ambient Temp. (F)
104 Degrees F
Blade Material
Aluminum
Standards
AMCA, UL and cUL Listed
Method of Construction
Stamped
Exhaust Airflow @ 0.125 in SP
329 cfm
Guard Finish
Zinc Plated
Motor Speed
1,775 RPM
Nameplate Voltage
115V AC
Maximum Ambient Operating Temperature
104 Degrees F
Ventilation Type
Exhaust
Exhaust Airflow @ 0.250 in SP
170 cfm
Includes Dehumidistat
No
Motor Horsepower
1/30 hp
Exhaust Airflow @ 0.100 in SP
329 cfm
Exhaust Airflow @ 0.000 in SP
466 cfm
Drive Type
Direct Drive
Maximum Noise Level
6.8 sones
Electrical Connection
Hardwired
Guard Type
Intake
Noise Level @ 0.000 in SP @ 5 ft
6.8 sones
Exhaust Airflow @ 0.375 in SP
117 cfm
Fan Style
Panel
Speed Controllable
Yes
Vent Design
Ductless
Assembled
Assembled
Duct Shape
Round
Noise Level @ 0.125 in SP @ 5 ft
8 sones
Wattage
57 W
Includes Motor
Yes

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 8 in, Blade Material Aluminum, Drive Type Direct Drive, Duct Diameter 8 1/4 in, Exhaust Airflow @ 0.000 in SP 466 cfm, Frame Finish Galvanized, Frame Material Steel, Guard Finish Zinc Plated, Guard Material Steel, Guard Type Intake, Includes Dehumidistat No, Maximum Noise Level 6.8 sones

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
