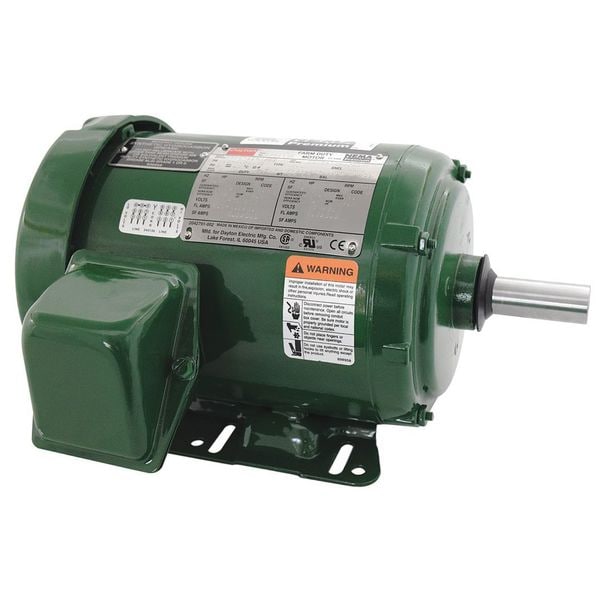

Dayton General Purpose Farm Duty Motor, 3-Phase, 2 HP, 230/460V AC, 1,750 Nameplate RPM, 143-5T/56HZ Frame 35Z918 - main

General Purpose Farm Duty Motor, 3-Phase, 2 HP, 230/460V AC, 1,750 Nameplate RPM, 143-5T/56HZ Frame

  • Mfr # 35Z918

  • Zoro # G4989257

product price:  $897.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Phase
Three
HP
2
RPM Range
1,701-1,800
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
35Z918
Zoro #
G4989257
UPC #
190735274170
Country of Origin
Mexico

Dimensions

Shaft Length
2 1/4 in
Length Less Shaft
10 3/4 in
Overall Length
13 in
Shaft Dia.
7/8 in

Details

Item
General Purpose Farm Duty Motor
Motor Design
3-Phase
Phase
Three
HP
2
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
143-5T/56HZ
Motor Service Factor
1.25
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,750
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Shaft Design
Keyed
Motor Sub Application
General Purpose Farm
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258525), UL Recognized (E47479)
Full Load Amps
5.7/2.8 A
Duty
Continuous
Ins. Class
F
Motor Efficiency Group
NEMA Premium Efficient
Motor Bearings
Ball
Hz
60/50 Hz
Item - Farm Duty Motors
General Purpose Farm Duty Motor
Max. Ambient Temperature
40 Degrees C
Frame Material
Rolled steel
Nominal Efficiency
86.5 %
Includes
Shaft Slinger, Gasketed Conduit Box, Shaft Key
Finish
Dayton Gray
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
Application
Farm Duty

Description

Farm Duty Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.7/2.8 A, 143-5T Frame, 60/50 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
