Shop All AC Farm Duty Motors
Dayton

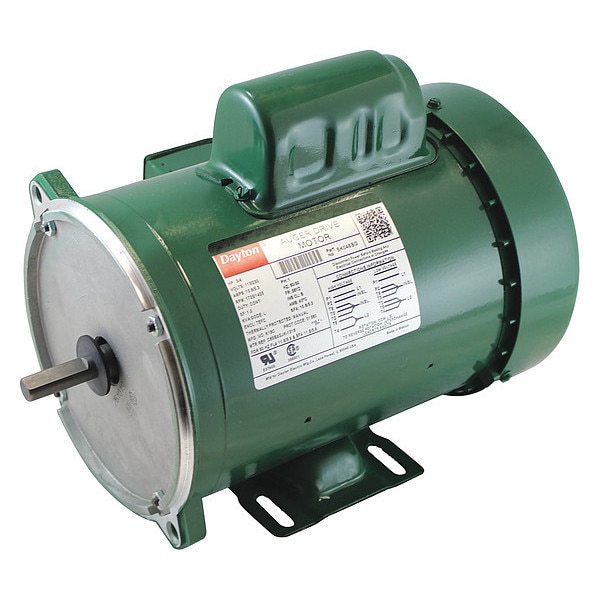

Auger Drive Motor, Capacitor-Start, 3/4 HP, 115/230V AC, 1,725 Nameplate RPM, 56YZ Frame

original price: $407.45
new price: $404.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Capacitor-Start
  • Phase Single
  • HP 3/4
  • RPM Range 1,701-1,800
  • Voltage 115/230V AC
See all product information

Product Information

Dimensions

Shaft Length 1 3/4 in
Shaft Dia. 1/2 in
Length Less Shaft 10 13/16 in
Overall Length 12 9/16 in

Details

Item Auger Drive Motor
Motor Design Capacitor-Start
Phase Single
HP 3/4
RPM Range 1,701-1,800
Voltage 115/230V AC
Frame 56YZ
Motor Service Factor 1
Motor Thermal Protection Manual
Motor Enclosure Design Totally Enclosed Fan-Cooled
Nameplate RPM 1,725
Motor Application Farm Duty
Motor Frame Material Rolled Steel
Motor Mounting Position Horizontal
Motor Mounting Type Face/Base
Motor Shaft Design Flat
Motor Sub Application Auger
Motor Shaft Rotation CW/CCW
Standards CSA Certified (258501), UL Recognized (E37403)
Motor Bearings Ball
Full Load Amps 10.6/5.3 A
Nominal Efficiency 67.2 %
Max. Ambient Temperature 40 Degrees C
Includes Gasketed Conduit Box and Capacitor Cover, Shaft Extension beyond fan guard for manual cranking and Shaft Key
Duty Continuous
Capacitor Required Included
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Item - Farm Duty Motors Auger Drive Motor
Ins. Class B
Finish Enamel
Hz 60/50 Hz
Max. Ambient Temp. 40 Degrees C
No. of Speeds 1
Duty Cycle Continuous

Description

Auger Drive Motor, Single Phase, Motor Design Capacitor-Start, 3/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 10.6/5.3 A, 56YZ Frame, 60/50 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel
