Dayton

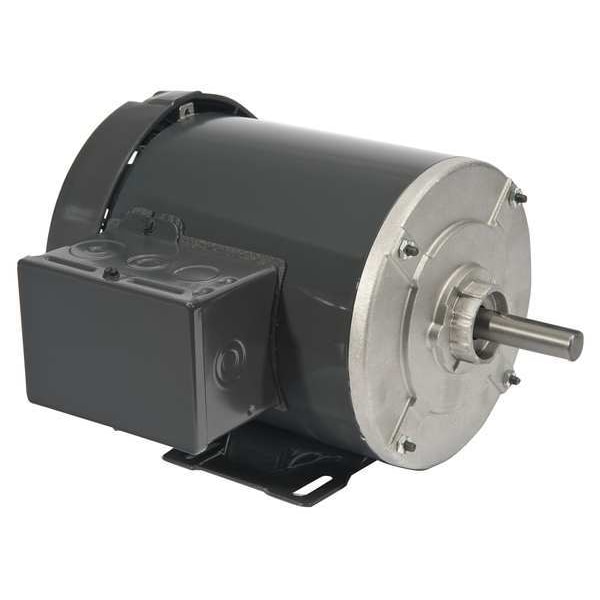

GP Mtr, Split Ph, TEFC, 1/2 HP, 1725 rpm, 56

product price: $329.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Shaft Dia. 5/8 in
  • Motor Shaft Design Keyed
  • Max. Ambient Temp. 104 Degrees F
  • Includes Conduit Box
  • Duty Continuous
See all product information

Product Information

Dimensions

Shaft Dia. 5/8 in
Shaft Length 1 7/8 in
Overall Length 11 13/16 in
Length Less Shaft 9 7/8 in
Manufacturers Warranty Length 1 yr

Details

Motor Shaft Design Keyed
Max. Ambient Temp. 104 Degrees F
Includes Conduit Box
Duty Continuous
Nominal Efficiency 64 %
Motor Mounting Type Rigid Base
Motor Thermal Protection None
Standards CSA (156060), UL (E47479)
Motor Design Split-Phase
Motor Efficiency Group Standard Efficient
Motor Bearings Ball
RPM Range 1,701-1,800
Voltage 115V AC
Hz 60 Hz
Motor Service Factor 1
No. of Speeds 2
Frame 56
Frame Material Rolled steel
Nameplate RPM 1,725/1,140
Motor Frame Material Rolled Steel
Ins. Class B
Motor Enclosure Design Totally Enclosed Fan-Cooled
Item General Purpose Motor
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
RPM Group 1701-1800
Full Load Amps 7.2/5.0 A
HP 1/2, 1/4
Motor Application General Application
Footnotes 45
Motor Shaft Rotation CW/CCW
Phase Single
Duty Cycle Continuous

Description

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/2, 1/4 HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 115V AC, Full Load Amps 7.2/5.0 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Shaft Design Keyed, Motor Frame Material Rolled Steel
