Shop DAYTON

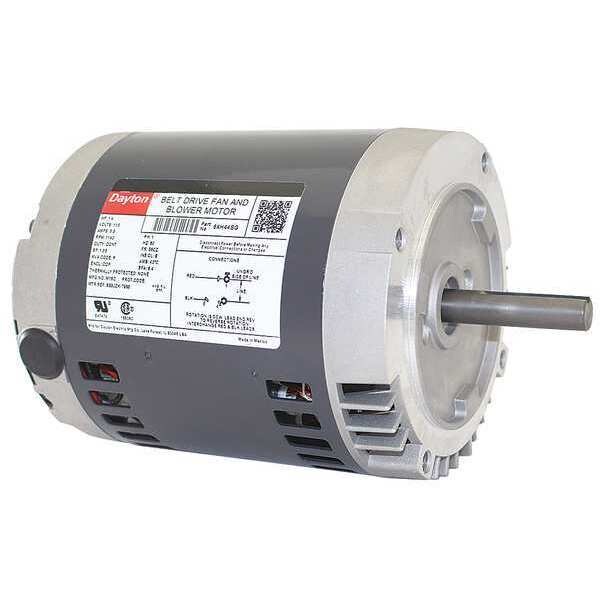

Belt Drive Mtr, SplitPh, ODP, 1/4HP, 1140rpm

  • Mfr # 6XH44BG

  • Zoro # G0738035

product price:
$
508.99
/ea
Free Shipping & Returns

Key Features

Motor Service Factor
1.35
Length Less Shaft
7 13/16 in
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
6XH44BG
Zoro #
G0738035
UPC #
190735372999
Country of Origin
Mexico
Motor Service Factor
1.35
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Phase
Single
Includes
Shaft Key
Full Load Amps
5.5 A
HP
1/4
Motor Sub Application
Belt Drive Fan/Blower
Hz
60 Hz
Standards
CSA Certified (258501), UL Recognized (E47479)
Motor Mounting Type
Face
Ins. Class
B
Motor Bearings
Ball
RPM Range
1,101-1,200
Nominal Efficiency
57.2 %
Motor Application
HVAC/R
Voltage
115V AC
Nameplate RPM
1,140
Motor Design
Split-Phase
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Frame
56CZ
Motor Enclosure Design
Open Dripproof
Motor Shaft Design
Keyed
Frame Material
Steel
No. of Speeds
1
Max. Ambient Temp.
104 Degrees F
Item
Belt Drive Motor
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Duty
Continuous
Duty Cycle
Continuous
Product Type
Fan and Blower Motor
Full Load Current @ 60 Hz
5.5 A
Insulation Class
B
Drive Type
Belt Drive
Bearing Type
Ball
Shaft Design
Keyed
Frequency
60 Hz
Manufacturers Warranty
1 yr
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.35
Mounting Position
All Angle
Application
Fan/Blower

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115V AC, 5.5 A Full Load Amps, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type C-Face, Motor Frame Material Steel, Motor Mounting Position All Angle, Shaft Length 2 7/16 in
