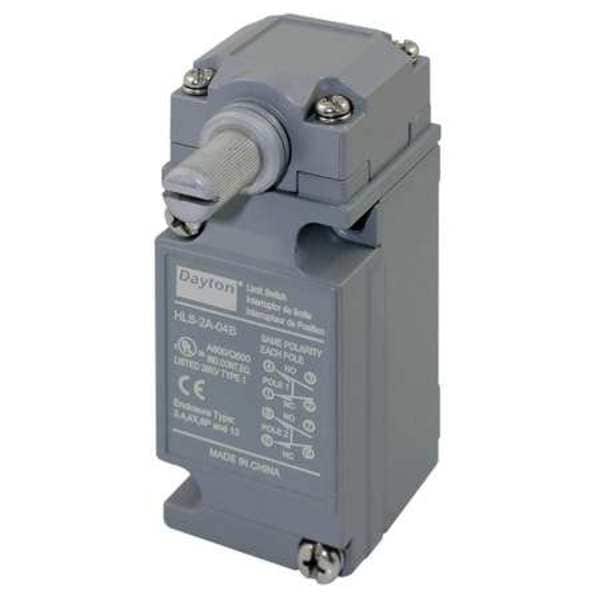

Dayton Heavy Duty Limit Switch, No Lever, Rotary, DPDT, 10A at 600V AC, Actuator Location: Side 12T887 - main

Heavy Duty Limit Switch, No Lever, Rotary, DPDT, 10A at 600V AC, Actuator Location: Side

  • Mfr # 12T887

  • Zoro # G3939887

product price:  $195.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
DPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
12T887
Zoro #
G3939887
UPC #
190735116210
Country of Origin
China

Dimensions

Height
4.04"
Width
1.65"
Body Depth - Limit Switch
1.74 in
Body Width - Limit Switch
1.65 in
Body Height - Limit Switch
3.35 in
Depth
2.52"
Body Height
3.35 in
Body Width
1.65 in
Mounting Hole Diameter
0.2 in
Body Depth
1.74 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
DPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Series
Dayton
Actuator Style (Limit Switch)
Rotary, No Lever
Amps
10
Mounting Hole - Limit Switch
(2) 0.20 in dia
Electrical Connection
Screw Terminals
Number of Poles
2
Basic Actuator Style (Limit Switch)
Rotary
Voltage Rating
600VAC/DC
DC Contact Rating
10A at 600V
Contact Form
DPDT
Actuator Style
Rotary Head
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Limit Switch Style
Heavy Duty Limit Switch
IP Rating
67
AC Contact Rating
10A at 600V
Operating Force
56.66 in-oz
Movement
CCW, CW
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Operating Temp. Range
-20 Degrees to 185 Degrees F
Wiring Entry
1/2 in NPT
Actuator Location (Limit Switch)
Side
Mounting Hole Spacing - Limit Switch
1.46 in x 1.16 in
NEMA Rating
13, 3, 4, 4X, 6P
Actuator Location
Side
Contact Form - Limit Switch
DPDT
Body Style (Limit Switch)
Standard
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator (Limit Switch)
No
Standards
CE, CSA, UL
Boot Sealed Actuator - Limit Switch
No
Action
A
Mounting Hole Horizontal Center to Center Distance
29 mm
Operating Torque - Maximum
3.54 in-lb
Operating Temperature - Minimum
-20 Degrees F
Mounting Hole Vertical Center to Center Distance
37 mm
Mounting Style
Surface
Includes Actuator
No Actuator Included
NEMA Enclosure Rating
13, 3, 4, 4X, 6P
Number of Mounting Holes
2
Boot Sealed Actuator
No Boot Included
Directional Movement
CCW/CW
Operating Temperature - Maximum
185 Degrees F

Description

Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches DPDT, Body Height - Limit Switch 3.35 in, Body Width - Limit Switch 1.65 in, Body Depth - Limit Switch 1.74 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 13, 3, 4, 4X, 6P, Mounting - Limit Switch Surface
