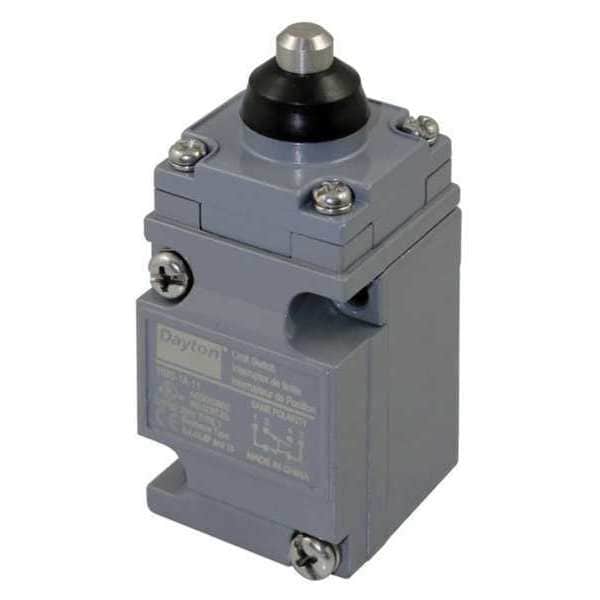

Heavy Duty Limit Switch, Plunger, SPDT, 10A at 600V AC, Actuator Location: Top

  • Mfr # 11X448

  • Zoro # G4177117

product price:
$
152.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
11X448
Zoro #
G4177117
UPC #
190735111406
Country of Origin
China

Dimensions

Body Width - Limit Switch
1.65 in
Body Depth - Limit Switch
1.74 in
Body Height - Limit Switch
2.46 in
Depth
1.76"
Width
1.65"
Height
3.63"
Body Depth
1.74 in
Body Width
1.65 in
Mounting Hole Diameter
0.2 in
Body Height
2.46 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Actuator Style (Limit Switch)
Plunger
AC Contact Rating
10 A @ 600 V
Body Style (Limit Switch)
Miniature
NEMA Rating
13, 3, 4, 4X, 6P
Actuator Location
Top
Amps
10
Operating Force
65 oz
Limit Switch Style
Heavy Duty Limit Switch
Actuator Style
Plunger
Movement
Vertical
Mounting Hole Spacing - Limit Switch
1.46 in x 1.16 in
Operating Temp. Range
-20 Degrees to 185 Degrees F
DC Contact Rating
10 A @ 600 V
Boot Sealed Actuator (Limit Switch)
No
Standards
CE, CSA, UL Listed
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Contact Form
SPDT
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Number of Poles
1
Electrical Connection
Screw Terminals
Contact Form - Limit Switch
SPDT
Wiring Entry
1/2 in NPT
Series
Dayton
Boot Sealed Actuator - Limit Switch
No
Basic Actuator Style (Limit Switch)
Plunger
Voltage Rating
600VAC/DC
Stem Thread - Limit Switch
No Stem
Actuator Location (Limit Switch)
Top
IP Rating
IP67
Mounting Hole - Limit Switch
(2) 0.20 in dia
Boot Sealed Actuator
No Boot Included
Directional Movement
Linear
Number of Mounting Holes
2
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
185 Degrees F
Action
A
Operating Force - Maximum
65 ozf
NEMA Enclosure Rating
13, 3, 4, 4X, 6P
Mounting Hole Horizontal Center to Center Distance
29 mm
Mounting Hole Vertical Center to Center Distance
37 mm
Mounting Style
Surface

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches SPDT, Body Height - Limit Switch 2.46 in, Body Width - Limit Switch 1.65 in, Body Depth - Limit Switch 1.74 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 13, 3, 4, 4X, 6P, Mounting - Limit Switch Surface, Electrical Connection Screw Terminal
