  11. HVAC Motor, 1/100 HP, 1550 rpm, 115V, 3.3

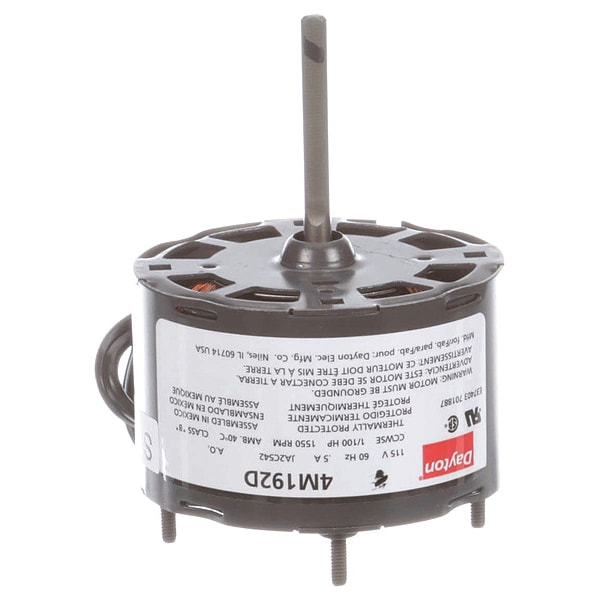

Dayton HVAC Motor, 1/100 HP, 1550 rpm, 115V, 3.3 71637641M - main

HVAC Motor, 1/100 HP, 1550 rpm, 115V, 3.3

  • Mfr # 71637641M

  • Zoro # G0687364

product price: $63.49
/ea

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/100
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
71637641M
Zoro #
G0687364
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
2 5/8 in
Shaft Length
2 1/4 in
Shaft Dia.
1/4 in
Body Dia.
3 5/16 in
Cord Length
10 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/100
RPM Range
1,501-1,600
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Motor Shaft Design
Flat
Motor Application
HVAC/R
Footnotes
26 (Has 8-1/2" cordset)
Item
HVAC Motor
Mounting Stud Location
4/Opposite Shaft End
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Motor Service Factor
1
Motor Sub Application
Direct Drive Fan/Blower
Frame
3.3
Plug Type
2 Prong Non-Polarized
Stud/Base Mtg. Pattern
2 in x 2 in
Motor Shaft Rotation
CCWSE
Motor Thermal Protection
Auto
Includes
8-1/2 in Cordset
Number of Shafts
1
Mounting Pattern
2 x 2
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Design
Shaded Pole
Motor Bearings
Sleeve
Phase
Single
Duty
Continuous
Full Load Amps
0.65 A
Motor Mounting Type
Ring/Stud
Hz
60 Hz
Ins. Class
B
Capacitor Required
No
Usable @ 208V
No
Motor Mounting Position
All Angle
Usable @ 200V
No
Duty Cycle
Continuous
Mounting Stud Pattern
2 in x 2 in
Mounting
Stud
Type
OEM Replacement

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/100 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 0.65 A Full Load Amps, 3.3 Frame, Output Watts 7.4 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
