  11. HVAC Motor, 1/20 HP, 1550 rpm, 230V, 3.3

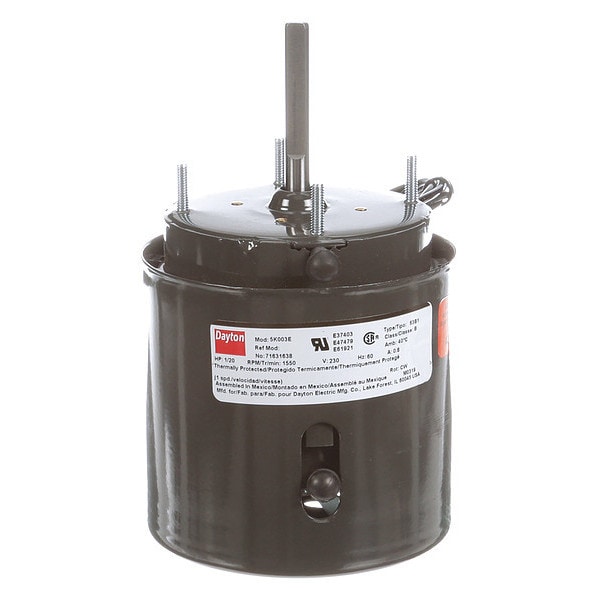

Dayton HVAC Motor, 1/20 HP, 1550 rpm, 230V, 3.3 71631638M - main

HVAC Motor, 1/20 HP, 1550 rpm, 230V, 3.3

  • Mfr # 71631638M

  • Zoro # G2370401

product price: $102.99
/ea
Free Shipping & Returns

Key Features

Voltage
230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Number of Speeds
1
HP
1/20
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
71631638M
Zoro #
G2370401
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
4 in
Shaft Length
2 1/4 in
Shaft Dia.
5/16 in
Cord Length
12 in
Length Less Shaft
4 1/4 in

Details

Voltage
230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Number of Speeds
1
HP
1/20
RPM Range
1,501-1,600
Motor Service Factor
1
Motor Shaft Design
Flat
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Motor Sub Application
Direct Drive Fan/Blower
Duty
Continuous
Standards
CSA Certified, UL Recognized
No. of Speeds
1
Motor Bearings
Sleeve
Ins. Class
B
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Mounting Pattern
2 x 2
Motor Design
Shaded Pole
Max. Ambient Temp.
40 Degrees C
Motor Application
HVAC/R
Number of Shafts
1
Full Load Amps
0.9 A
Stud/Base Mtg. Pattern
2 in x 2 in
Motor Thermal Protection
Auto
Frame
3.3
Item
HVAC Motor
Hz
60 Hz
Motor Mounting Type
Ring/Stud
Phase
Single
Motor Shaft Rotation
CWSE
Mounting Stud Location
4/Shaft End
Capacitor Required
No
Motor Mounting Position
All Angle
Usable @ 200V
No
Usable @ 208V
No
Mounting Stud Pattern
2 in x 2 in
Duty Cycle
Continuous
Mounting
Stud

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 230V AC, 0.9 A Full Load Amps, 3.3 Frame, Output Watts 37 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Stud
