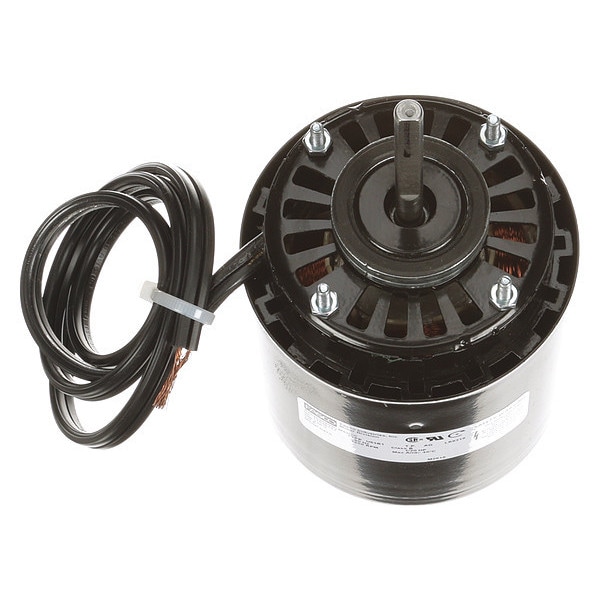

HVAC Motor, OAO, 1/20 HP, 1550 rpm, 208-230V

  • Mfr # D470

  • Zoro # G7557961

product price:
$
163.99
/ea
Free Shipping & Returns

Key Features

Voltage
208-230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/20
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D470
Zoro #
G7557961
UPC #
818508020082
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/16 in
Body Dia.
3 5/16 in
Shaft Length
2 5/8 in
Cord Length
32 in
Length Less Shaft
5 1/16 in
Lead Length
33 in
Stud Size
#8-32
Overall Length
6 31/32 in
Bolt Circle Dia.
2 7/8 in
Shaft Diameter
5/16 in
Body Diameter
3.3 in
Frame Size
3.3
Bolt Circle Diameter
2 7/8 in
Mounting Stud Thread Size
#8-32
Wire Rope Length
6 31/32 in
Length
6 31/32 in

Details

Voltage
208-230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/20
RPM Range
1,501-1,600
Motor Sub Application
Refrigerator/Freezer
Motor Bearings
Sleeve
Motor Design
Shaded Pole
Frame
3.3
Application
Fan/Blower
Standards
CSA Certified, UL Recognized
Item
Refrigeration Motor
Motor Thermal Protection
Auto
Mounting Stud Location
4/Shaft End
Motor Application
HVAC/R
Motor Shaft Design
Flat
Full Load Amps
1 A
Duty
Continuous
Motor Service Factor
1
Number of Shafts
1
Motor Shaft Rotation
CWSE
Phase
Single
Motor Mounting Type
Ring/Stud
Max. Ambient Temp.
40 Degrees C
Stud/Base Mtg. Pattern
2-27/32 in x 90 Degrees
Hz
60 Hz
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Ins. Class
B
No. of Speeds
1
Capacitor Required
Capacitor Not Required
Motor Frame Material
Steel
Weight
4 lb
Usable @ 208V
Usable at 208V
Mounting Holes
(4) #8-32
Usable @ 200V
Not Usable at 200V
Mounting
Stud
Bearing Type
Sleeve
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Wattage
40 W
Frame Material
Steel
Full Load Current @ 60 Hz
1.0 A
Motor Enclosure Type
Open Air Over
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Drive Type
Direct Drive
Shaft Design
Flat
Product Type
Refrigeration Motor
Sub Application
General Purpose

Description

Refrigeration Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.0 A Full Load Amps, 3.3 Frame, Output Watts 40 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
