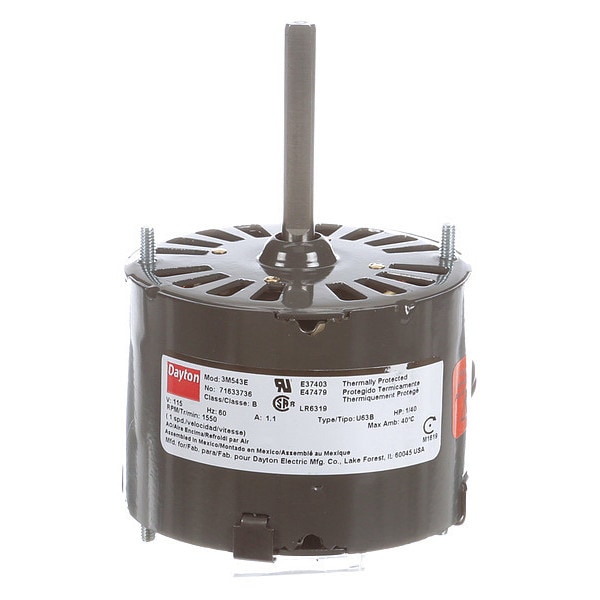

Dayton HVAC Motor, 1/40 HP, 1550 rpm, 115V, 3.3 71633736M - main

HVAC Motor, 1/40 HP, 1550 rpm, 115V, 3.3

  • Mfr # 71633736M

  • Zoro # G1983572

product price:  $64.99
/ea

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/40
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
71633736M
Zoro #
G1983572
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 5/16 in
Shaft Dia.
5/16 in
Length Less Shaft
3 1/8 in
Body Dia.
3 5/16 in
Cord Length
12 in
Shaft Diameter
5/16 in
Frame Size
3.3
Body Diameter
3.3 in
Overall Length
4 3/4 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/40
RPM Range
1,501-1,600
Item
HVAC Motor
Mounting Stud Location
2/Both Ends
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Full Load Amps
1.1 A
Motor Thermal Protection
Auto
Motor Bearings
Sleeve
Stud/Base Mtg. Pattern
2-7/8 in
Duty
Continuous
Motor Sub Application
Direct Drive Fan/Blower
Number of Shafts
1
Motor Shaft Rotation
CWSE
Mounting Pattern
2-7/8
Motor Design
Shaded Pole
Frame
3.3
Motor Shaft Design
Flat
Motor Mounting Type
Ring/Stud
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Motor Service Factor
1
Hz
60 Hz
No. of Speeds
1
Phase
Single
Standards
CSA Certified, UL Recognized
Motor Application
HVAC/R
Capacitor Required
Capacitor Not Required
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Mounting Stud Pattern
2 7/8 in
Duty Cycle
Continuous
Motor Mounting Position
All Angle
Mounting
Stud
Type
OEM Replacement
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Frequency
60 Hz
Drive Type
Direct Drive
Motor Enclosure Type
Open Air Over
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Sleeve
Frame Material
Steel
Full Load Current @ 60 Hz
1.1 A
Wattage
19 W
Shaft Design
Flat
Sub Application
General Purpose

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/40 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 1.1 A Full Load Amps, 3.3 Frame, Output Watts 19 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
